LT4000M Series (modular) Options

Serial Interface

Product NameModel No.Description
RJ45 RS-232C Cable (5m)PFXZLMCBRJR21Cable with loose wires at one end for RS-232C connection between various hosts and the LT.
RJ45 RS-485 Cable (5m)PFXZLMCBRJR81Cable with loose wires at one end for RS-485 connection between various hosts and the LT.

USB Interface

Product NameModel No.Description
EZ Tower Light tube mounting with fixing platePFXZCETWHA1USB Connection Type Monolithic EZ Tower Light tube mounting with fixing plate
EZ Tower Light Options
EZ Tower Light with base mountingPFXZCETWW1USB Connection Type Monolithic EZ Tower with base mounting
EZ Tower Light Options
EZ Illuminated SwitchPFXZCCEUSG1A unit of 5 illuminated switches with multiple color LED easily connected with LT via USB
EZ Illuminated Switch Options
EZ NumpadPFXZCCEUKB1Ten-key pad unit easily connected with LT via USB
EZ Numpad Options
EZ Fingerprint Recognition Unit
(End of Sale: Dec. 27, 2019)
PFXZCCEUSS1Fingerprint recognition unit easily connected with LT via USB
EZ Fingerprint Recognition Unit Options
USB Transfer Cable (USB Type A/mini B) (1.8m)ZC9USCBMB1Cable for transferring screen data from the PC (USB Type A) to LT (USB mini B)
USB Panelmount Extension Cable (USB Type A) (1m)CA5-USBEXT-01Extension cable that attaches to USB (Type A) port of the LT
USB Panelmount Extension Cable (USB mini B) (1m)ZC9USEXMB1Extension cable that attaches to USB (mini B) port of the LT
USB Cable (5m)FP-US00Connects a USB printer (Type B)

Software

* "* *" is changed with the version of software.

Product NameModel No.Description
GP-Pro EXPFXEXEDV**Screen-creation software
GP-Pro EX Editor License*1*3PFXEXEDLS**GP-Pro EX Editor License
GP-Pro EX Editor Group License*1*210 licensesPFXEXGRPLS**10GP-Pro EX editor group licenses
25 licensesPFXEXGRPLS**25
50 licensesPFXEXGRPLS**50
GP-Viewer EX1 licenceEX-VIEWER-LICENSELicense allowing a PC to access a LT in remote mode.
10 licencesEX-VIEWER-LICENSE-10
30 licencesEX-VIEWER-LICENSE-30
Pro-Server EX*4PFXEXSDVV**Software that connects a PC to a LT via Ethernet and collects and transmits data
Pro-Server EX Developer License*5EX-SED-LICENSEPro-Server EX developer license
Pro-Server EX Runtime License*6EX-SRT-LICENSEPro-Server EX Runtime license
Pro-face Remote HMI
(iPhone, iPad, iPod touch) V*.*
PFXEXRHIOSV**Software to operate Pro-face HMI screen on iPhone, iPad and iPod touch
Pro-face Remote HMI
(Android) V*.*
PFXEXRHANDV**Software to operate Pro-face HMI screen on Android OS
Pro-face Remote HMI Free
(Android) V*.*
PFXEXRHANDTRV**Free software to operate Pro-face HMI screen on tablets or smartphones with Android OS
MES Action LicenseEX-MES-LICENSE-V**License key permitting Pro-Server EX to access a database

Option Items

Product NameModel No.Description
Display module/Rear module separation cable
(3m)
PFXZXMADSM31Cable with hook to install a rear module on a DIN rail while connecting the rear module to a separated display module
Display module/Rear module separation cable
(5m)
PFXZXMADSM51
Panel Cutout Adapter *75-inchGP377-GP4000M-AT00Panel cutout adapter for mounting GP4000M Series, LT4000M Series in cutout of GP-330*T/S/L, ST-330*T/S/B/W, GP-230*T/S/L, GP377, GP370
GP37W2-GP4000M-AT00Panel cutout adapter for mounting GP4000M Series, LT4000M Series in cutout of GP37W2, LT(GLC150)
Screen Protection Sheet3-inchCA6-DFS4-01
(For LT-4201TM)
Disposable, dirt-resistant sheet for the unit's screen (5 sheet/set) (hard type)
5-inchPFXZCBDS61
(For LT-4301TM)
UV Protection Sheet3-inchPFXZCFUV41
(For LT-4201TM)
Ultraviolet protection for the display (1 piece)
5-inchPFXZCFUV61
(For LT-4301TM)

Maintenance Options

* Please purchase when the product is damage or lost.

Product NameModel No.Description
Installation NutPFXZGMNT1Nut to install the display module (10 pcs/set)
Socket WrenchPFXZGMSW1Socket wrench to tighten and loosen the display installation nut
Accessories KitPFXZGMAK1Anti-rotation tee, USB cable clamp to prevent disconnection (Type A, mini-B, for 1 port), 2mm-high spacer to adjust installation panel thickness (1pcs/each).
LT4000M Analog model Rear ModulePFXLM4B01DACLT4000M Analog model Rear Module, Source Output, DC24V (Main Unit)
PFXLM4B01DAKLT4000M Analog model Rear Module, Sink Output, DC24V (Main Unit)
LT4000M DIO model Rear ModulePFXLM4B01DDCLT4000M DIO model Rear Module, Source Output, DC24V (Main Unit)
PFXLM4B01DDKLT4000M DIO model Rear Module, Sink Output, DC24V (Main Unit)
Rear Module Installation AdapterPFXZXMADSA1DIN rail installtion adapter for rear modules in non-display operation
5.7 inch Display ModulePFXXM4300TPFor LT4000M/GP4000M Series Display Modular type, 5.7-inch
3.5 inch Display ModulePFXXM4200TPFor LT4000M/GP4000M Series Display Modular type, 3.5-inch
DC Power Supply ConnectorPFXZGMCNDC1Connector to connect DC power supply cable (5 pcs/set).
DIO Connector for LT4000MPFXZLMCNIO1I/O connector 15-pin (2 pcs/set) and I/O connector 6-pin (2 pcs/set)

CANopen Slave Unit

CANopen is EN50325-4 Network Standard. Using the LT unit as a master, you can communicate over a CANopen network. For more information of system design and supported products, please visit Vector Japan Co. Ltd. website.

TM3 CANopen Connection

CANopen unit

Model No.DescriptionDetailsGuide BookIO Configurator
TM3BCCO *8TM3 Bus Coupler CANopenProduct page

Modicon TM3 guidebook
for setting up a connection to HMI

*Before using TM3, be sure to read this TM3 Guide book with recommended substitutes and precautions for replacing the EX module.

TM3BC IO Configurator

*TM3BC IO Configurator software is required to configure TM3BCCO and TM3.

Modicon TM3 Module

Model No.DescriptionDetailsGuide BookIO Configurator
TM3DI88-ch Sink/Source Inputs (Screw)Product page

Modicon TM3 guidebook
for setting up a connection to HMI

*Before using TM3, be sure to read this TM3 Guide book with recommended substitutes and precautions for replacing the EX module.

TM3BC IO Configurator

*TM3BC IO Configurator software is required to configure TM3BCCO and TM3.

TM3DI8G8-ch Sink/Source Inputs (Spring)Product page
TM3DI1616-ch Sink/Source Inputs (Screw)Product page
TM3DI16G16-ch Sink/Source Inputs (Spring)Product page
TM3DQ8T8-ch Transistor Source Outputs (Screw)Product page
TM3DQ8TG8-ch Transistor Source Outputs (Spring)Product page
TM3DQ8U8-ch Transistor Sink Outputs (Screw)Product page
TM3DQ8UG8-ch Transistor Sink Outputs (Spring)Product page
TM3DQ8R8-ch Relay Outputs (Screw)Product page
TM3DQ8RG8-ch Relay Outputs (Spring)Product page
TM3DQ16TK16-ch Transistor Source Outputs (HE10)Product page
TM3DQ16UK16-ch Transistor Sink Outputs (HE10)Product page
TM3DQ16R16-ch Relay Outputs (Screw)Product page
TM3DQ16RG16-ch Relay Outputs (Spring)Product page
TM3DM8R4-ch Sink/Source Inputs,
4-ch Relay Outputs (Screw)
Product page
TM3DM8RG4-ch Sink/Source Inputs,
4-ch Relay Outputs (Spring)
Product page
TM3DM24R16-ch Sink/Source Inputs,
8-ch Relay Outputs (Screw)
Product page
TM3DM24RG16-ch Sink/Source Inputs,
8-ch Relay Outputs (Spring)
Product page
TM3AI2H2-ch Voltage/Current Inputs (Screw)Product page
TM3AI2HG2-ch Voltage/Current Inputs (Spring)Product page
TM3AQ22-ch Voltage/Current Outputs (Screw)Product page
TM3AQ2G2-ch Voltage/Current Outputs (Spring)Product page
TM3TI44-ch Voltage/Current or Temperature Inputs (Screw)Product page
TM3TI4G4-ch Voltage/Current or Temperature Inputs (Spring)Product page
TM3AM64-ch Voltage/Current Inputs,
2-ch Voltage/Current Outputs (Screw)
Product page
TM3AM6G4-ch Voltage/Current Inputs,
2-ch Voltage/Current Outputs (Spring)
Product page
TM3TM32-ch Temperature or Voltage/Current Inputs,
1-ch Voltage/Current Output (Screw)
Product page
TM3TM3G2-ch Temperature or Voltage/Current Inputs,
1-ch Voltage/Current Output (Spring)
Product page

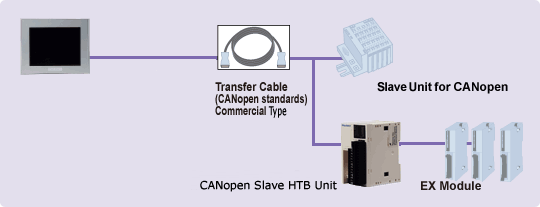

HTB CANopen Connection

CANopen unit

Product NameModel No.DescriptionOthers
CANopen Slave HTB Unit*9HTB1C0DM9LPSlave unit supporting CANopen with 12 digital inputs, 6 relay outputs and 2 transistor source outputs. Up to 7 units of EX modules can be connected.Manual

EX Module

EX module is an expansion unit. 7 EX modules max. can be connected with CANopen Slave HTB unit.
Input module
Product NameModel No.DescriptionDetails
8-point Input ModuleEXM-DDI8DT8-point sink-source shared type expansion unitManual
16-point Input ModuleEXM-DDI16DT16-point sink-source shared type expansion unit
Output module
Product NameModel No.DescriptionDetails
8-point relay output moduleEXM-DRA8RT8-point relay output (2 common) type expansion unitManual
16-point relay output moduleEXM-DRA16RT16-point relay output (2 common) type expansion unit
8-point transistor output moduleEXM-DDO8UT8-point transistor output sink type expansion unit
16-point transistor output moduleEXM-DDO16UK16-point transistor output sink type expansion unit
8-point transistor output moduleEXM-DDO8TT8-point transistor output source type expansion unit
16-point transistor output moduleEXM-DDO16TK16-point transistor output source type expansion unit
Input/ Output mixed module
Product NameModel No.DescriptionDetails
4-Point Input/ 4-Point Output ModuleEXM-DMM8DRT4-point input sink-source and 4-point relay output type expansion unit (1 common) mixed I/O unitManual
16-Point Inputs/ 8-point Relay Output ModuleEXM-DMM24DRF16-point input sink-source / 8-point relay output mixed I/O type expansion unitManual
Analog module
Product NameModel No.DescriptionDetails
2-ch Analog Input ModuleEXM-AMI2HT2-ch analog input type expansion unitManual
2-ch Thermocouple Pt100 Input/ 1-ch Analog Output ModuleEXM-ALM3LT2-ch analog input / 1-ch analog output type expansion unit
2-ch Analog Input/ 1-ch Analog Output ModuleEXM-AMM3HT2-ch analog input / 1-ch analog output type expansion unit
1-ch Analog Output ModuleEXM-AMO1HT1-ch analog output type expansion unit
4-ch Voltage, Current, Pt100/ Pt1000/ Ni100/ Ni1000 Input ModuleEXM-AMI4LT4-ch Voltage, Current, Temperature Expansion UnitManual
2-ch Analog Output ModuleEXM-AVO2HT2-ch analog output type expansion unit
4-ch Analog Input/ 2-ch Analog Output ModuleEXM-AMM6HT4-ch analog input / 2-ch analog output expansion unit
8-ch Temperature Pt100/ Pt1000 Input ModuleEXM-ARI8LT8-ch temperature input type expansion unit

*1 LT4000M Series requires GP-Pro EX Ver. 3.12 or later.

*2 Group License consists of one set of Serial No./Key Code for installation on 10 PCs. (Should be used in the same office. Only supports GP-Pro EX Ver. 3.1.)

*3 Purchase this product when installing GP-Pro EX in a second or subsequent PC. One license is required for each PC.

*4 Includes the settings editor and Run time.

*5 Purchase this product when installing the settings editor and Run time in subsequent PCs.

*6 Purchase this license when installing only Run time in subsequent PCs. One license is required for each PC.

*7 It is not guaranteed to use under the environment of IP65. Please confirm your usage environment before using this product in advance.

*8 EX Module cannot connect to TM3 Bus Coupler CANopen unit.

*9 TM3 module cannot connect to CANopen Slave HTB Unit.
