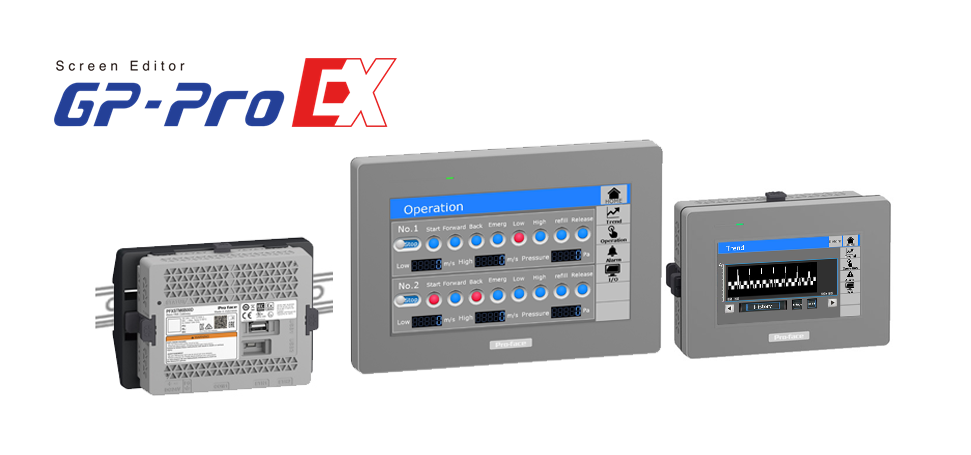

STM6000 Series supports GP-Pro EX to migrate smoothly with utilizing your existing assets.

STM6000_ex_top

Easy migration to the latest HMI with high-resolution on wide-display; the basic modular HMI STM6000 Series

The new software is also available; BLUE offers an alternative experience in HMI project design.

Feature

Refined

Achieve the previously unimaginable and bring displays to life with 16 million colors.

Refined

Simple & Easy

Easy Migration with GP-ProEX. Use the same application(GP-ProEX) and leverage existing assets. And, using the same cut-out free system hardware substitution at the same place of the GP4000M series is easy to do. (Download Replacement book.)
Connected and secure

Connected & Secured

User-friendly protocols allow you to connect your devices with ease via multiple interfaces and connect OT to IT.
Connected and secure

Lineup/Specifications

  STM-6200WA STM-6400WA

STM-6B00D
(Multi-Converter for STM6000)

Model No PFXSTM6200WADE  PFXSTM6400WADE PFXSTM6B00DE
Display 4.3” Wide 7.0” Wide -
16M colors White LED 16 level brightness control -
Resolution 480 x 272 800 x 480 800 x 480
Touch Panel Type : resistive film (analog). Service life : 1,000,000 times or more -
Interface COM : RS-232C / 422 / 485*
Ethernet : IEEE802.3i /IEEE802.3u, 10BASE-T / 100Base-TX x 1
USB : TYPE A X 1, micro-B x 1
Input Voltage 19.2 to 28.8 Vdc
Memory Application memory : Media : FLASH EPROM / Screen area: 64MB / User font area 8 MB / Logic program area: 132KB
Backup memory : Screen Area: SRAM 320KB, Variable Area: SRAM 64KB
Battery: Unreplaceable battery by the customer/ Primary battery for clock data backup
Structure IP65F , UL 50/50E , Type 1 , Type 4X (indoor use only), Type 12, Type 13
Certifications *1 CE, UL/cUL, RCM, KC, EAC, ATEX/IECEx , Marine, RoHS, WEEE
Details Specifications Specifications Specifications

*1 Please refer to the specifications page for the latest available certifications.​​
