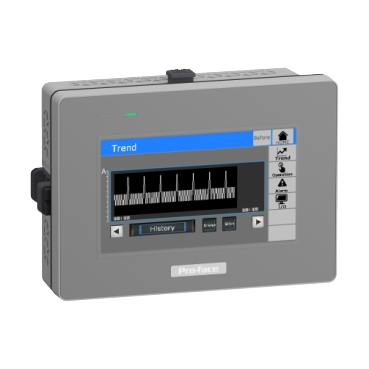

PFXSTM6200WADE

Standard product information
Family
HMI
Series
STM6000 Series
Size
4" Wide
Model
PFXSTM6200WADE
Global Code
PFXSTM6200WADE
Product Features
Modular 4" DC Analog (GP-Pro EX)
Repair Status
- (Maintenance service is not available. Replace with a new unit under warranty.)

The power consumption for the combined unit of the rear module and the display module equals the sum of power consumption of the two modules.

EQUIPMENT DAMAGE
• Store this product in areas where temperatures are within the product’s specifications.
• Do not restrict or block the product’s ventilation slots.
Failure to follow these instructions can result in equipment damage.

Display specifications
Display type
TFT Color LCD
Display size
4.3" Wide
Resolution
480 x 272 pixels
Effective display area
W95.04 x H53.86 mm [W3.74 x H2.12 in]
Display colors
16 million colors
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog, single-touch)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
5 ms or less
Power consumption
(Rear module) Max. 6.8 W
(Rear module)When power is not supplied to external devices: 3.5 W or less
(Display module) Max. 1.0 W
(Display module)When power is not supplied to external devices: 0.6 W or less
In-rush current
30 A or less
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Memory
Application memory
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No
Backup memory
When using GP-Pro EX:
 - Screen Area: SRAM 320KB
 - Variable Area: SRAM 64KB

Battery: Unreplaceable battery by the customer / Primary battery for clock data backup
Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less
USB (micro-B)
USB 2.0 (micro-B) x 1, Communication Distance: 5 m [16.4 ft]
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Cooling method
Natural air circulation
Structure
Rear Module: IP20
Display Module: IP65F, UL 50/50E, Type 1, Type 4X (indoor use only), Type 12, Type 13*1
External dimensions
Rear Module: W145.6 x H108.23 xD 41.4 mm [W5.73 x H4.26 x D1.63 in] (excluding protrusions)
Display Module: W140.4 x H101.1 x D13.9 mm [W5.53 x H3.98 x D0.55 in] (excluding protrusions)
Panel cut-out dimensions
Diameter 22.5 mm (0.88 in)
Weight
Rear Module: 0.27 kg (0.6 lb) or less
Display Module:0.22 kg (0.49 lb) or less

1The front face of the unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the unit's level of resistance is equivalent to these standards, oils that should have no effect on the unit can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the unit's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the unit and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the unit, be sure to confirm the type of conditions that will be present in the unit's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

Dimensions
External dimensions
Panel cut-out dimensions
A B C
22.5 mm (+0/-0.3 mm)
(0.88 in [+0/-0.01 in])
4.0 mm (+0/-0.2 mm)
(0.15 in [+0/-0.007 in])
30.0 mm (+0/-0.2 mm) (1.18 in [+0/-0.007 in])


Panel thickness recommended range:

Panel material Thickness range (D)
Steel 1.5... 6.0 mm (0.06... 0.23 in)
Glass fiber reinforced plastics (minimum GF30) 3.0... 6.0 mm (0.12... 0.23 in)
