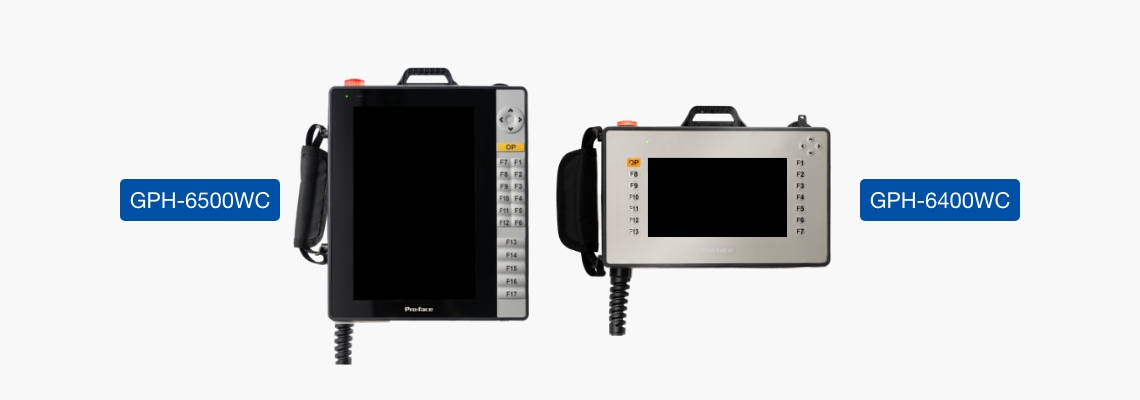

GPH6000 Series
Lineup / Specifications
| GPH-6500WC | GPH-6400WC | |
|---|---|---|
| Model No | PFXGPH6500WCD | PFXGPH6400WAD |
| Details | Spec | Spec |
| Display | 10” Wide (800 x 1,280) | 7.0” Wide (1024 x 600) |
| Display Colors | 16M colors | |
| Backlight | White LED 16 level brightness control | |
| Touch Panel |
Projected capacitive(Multi-touch) Touch panel service life = 50,000 hours |
Projected capacitive(Multi-touch) Touch panel service life = 30,000 hours |
| Function SW | OP, F1 to F17 | OP, F1 to F13 |
| Navigator | ↑, ↓, ←, → | |
| Interface |
COM: RS-232C/422/485 x1 Ethernet : 10BASE-T / 100BASE-TX x1 USB: host type A x1 SD Card Slot: Storage x1 Emergency Stop switch x1 Enabling switch x1 Key switch x1 | |
| Memory(GP-Pro EX) |
Application memory : Media : eMMC Flash / Screen area: 64MB / User font area 8 MB / Logic program area: 132KB Backup memory : Screen Area: FRAM 320KB, Variable Area: FRAM 64KB, Battery : Replaceable battery / Primary battery for clock data backup | |
| Power (Input voltage) | DC24V (19.2 to 28.8Vdc) | |
| Operating Temp/ Humidity | -20-60 °C / 5% to 85%(no condensation) | |
| Storage Temp | -20-70 °C / 5% to 85%(no condensation) | |
| Certifications |
IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure), CE, UL and cUL, RMC, KC, EAC, RoHS, WEEE | |
