PFXGPH6500WCD

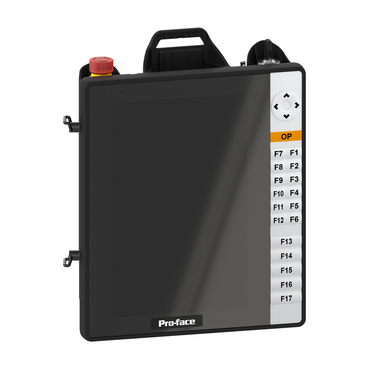

Touch panel screen, Proface GPH6000, 10 inch multi-touch projected capactive technology display

Main
Complementary
Environment
Packing Units
Dimensions Drawings
Offer Sustainability

Main

Product or component type

Touch panel screen

Range of product

Proface GPH6000

Processor name

ARM Cortex-A53

Processor frequency

1.6 MHz

Software package

GP-Pro EX

Memory description

2 GB device memory
512 KB backup memory

Memory capacity

2 GB
512 KB

Complementary

Display size

10 inch

Display type

Colour TFT LCD

Display resolution

800 x 1280 pixels

Display colour

16 million colours

Brightness

100 levels

Touch panel

Multi-touch projected capactive technology (PCT)

Character font

ASCII
ASCII (European characters)
Chinese (simplified Chinese)
Japanese
Katakana
Korean
Taiwanese (traditional Chinese)

Backlight lifespan

50000 hours with white

Integrated connection type

1 COM serial link, RS232C/RS422/RS485 - 2400...115200 bps
USB 2.0 type A
1 Ethernet, 10BASE-T/100BASE-TX
SD card slot
emergency stop switch output interface
3-position enable output interface
key switch output interface

Communication port protocol

Multiprotocol

[Us] rated supply voltage

24 V DC (+/- 20 %)external power supply

Local signalling

Status LED green, steady for operating
Status LED orange, flashing for software starting up

Inrush current

30 A

Power consumption in W

10.8 W

Realtime clock

Built-in 0-50 °C
Built-in 10...90 % RH

Marking

Enclosure material

Width

242 mm

Height

296 mm

Depth

64 mm

Net weight

1.5 kg

Environment

Product certifications

CE
KC
UKCA
RCM
UL
cUL
EAC

Standards

IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

IP degree of protection

IP65f

Operating altitude

2000 m

Pollution degree

Electromagnetic compatibility

Electrical fast transient/burst immunity test 2 kV power ports conforming to IEC 61000-4-5
Electrical fast transient/burst immunity test 1 kV signal ports
Electrostatic discharge 6 kV contact discharge conforming to IEC 61000-4-2

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

13 cm

Package 1 Width

28 cm

Package 1 Length

38 cm

Package 1 Weight

1.9 kg

Unit Type of Package 2

S04

Number of Units in Package 2

Package 2 Height

30 cm

Package 2 Width

40 cm

Package 2 Length

60 cm

Package 2 Weight

4.560 kg

Unit Type of Package 3

P12

Number of Units in Package 3

Package 3 Height

75 cm

Package 3 Width

80 cm

Package 3 Length

120 cm

Package 3 Weight

48.48 kg

Offer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained

Recyclability potential, in %

Total lifecycle Carbon footprint

546 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3]

101 kg CO2 eq.

Carbon footprint of the distribution phase [A4]

2 kg CO2 eq.

Carbon footprint of the installation phase [A5]

0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6]

388 kg CO2 eq.

Mercury free

Yes

Sustainable packaging

Carbon footprint of the end-of-life phase [C1 to C4]

55 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total lifecycle Carbon footprint

546

F-gas free

Only air and vacuum used for insulation / breaking, no F-gas including SF6

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

SCIP Number

4f8bf8b2-4bdf-40ef-a5f7-349f65712546

REACh Regulation

https://download.schneider-electric.com/files?p_Doc_Ref=PFXGPH6500WCD_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29

EU RoHS Directive

https://download.schneider-electric.com/files?p_Doc_Ref=PFXGPH6500WCD_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Halogen-free status

Product contains halogen above thresholds

PVC free

Silicone-free

End of life manual availability

End of Life Information

Removable battery

User replaceable

Take-back

WEEE Label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Dimensions Drawings
