Overview:

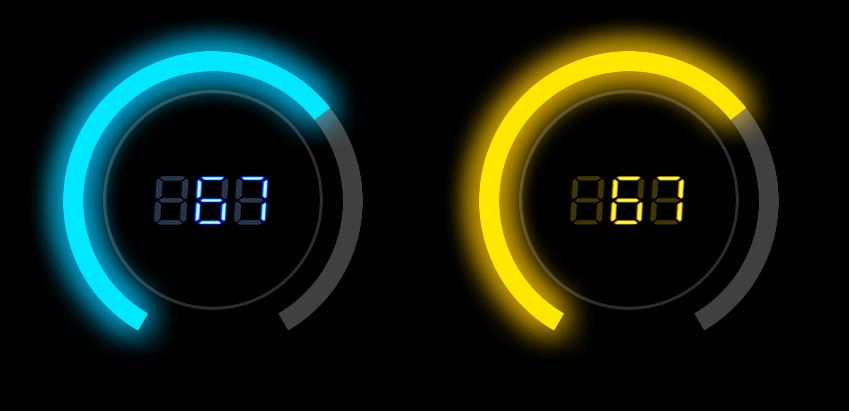

This is a digital pie chart.
There are 2 types.
The first is that the color is not changed in the whole range.

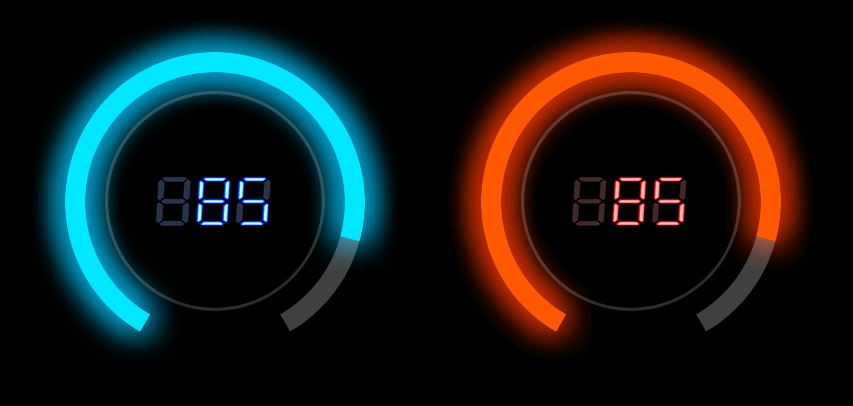

The other one is that the color is changed by the value range. Specifically, the range from 0 to 59 will be blue, the range from 60 to 79 will be yellow, and the range from 80 to 100 will be red.
You can adjust the minimum and maximum ranges in both gauges, and the amount of movement of the pie chart will automatically change accordingly.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 640 by 400 pixels.
Details:
When you place this gauge on the screen, the following symbol variables and D-Script will be automatically registered in your project.
Please refer to the included simple manual for instructions on how to change the settings.
- (Symbol Variable) SD_Gauge04
- (Symbol Variable) SD_Gauge04_Setting
- (D-Script) SD_Gauge04
Remarks:
- The download data 'SmartDesign_Gauge.zip' also includes other Smart Design Gauges. If you have already downloaded another Smart Design Gauge, you do not need to download this part.
- This package file is not available in GP-Pro EX versions before 5.00.000.
