Overview:

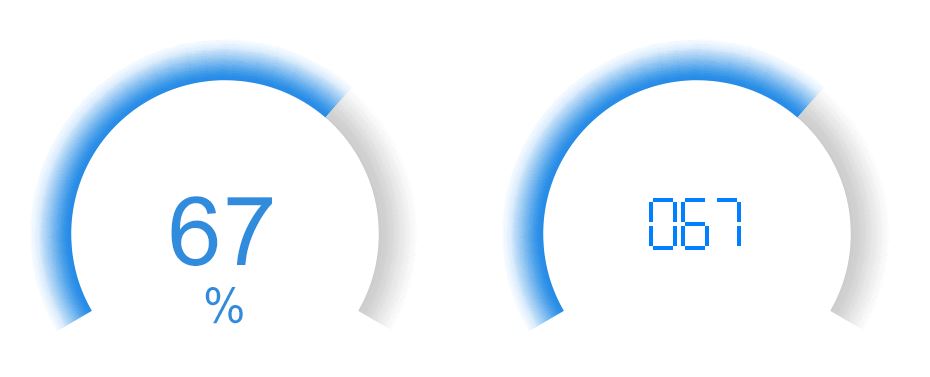

This is a smartphone-like pie chart that matches the white background screen.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 640 by 400 pixels.
Details:
When you place this gauge to your screen, the symbol variable like below will be registered automatically.
- SmartDesignGauge02
You can display the PLC data to the gauge by registering your PLC address to these symbol variables.
However, this gauge is supported only by the value from 0 to 100. For example, if you want to use by the value from 0 to 1000, please make the script to scale "0 - 1000" to "0 - 100" on your side.
Tutorial Video:
You can check out how to use the Smart Design Gauge in the following video.
Design Improvement - Utilize Smart Design Parts
Remarks:
- This file extension will be ".pkg", so after importing it with the package editor, we recommend to use registering it to the keyboard screen.
- A manual with more details will be available soon.
