Updated: 3/23/2026
Performance has been significantly improved.
Overview:

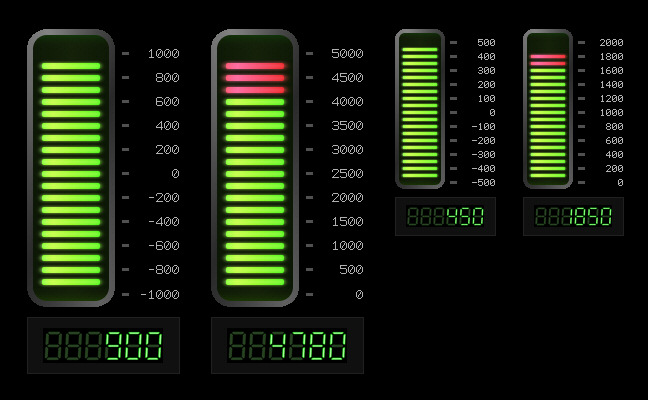

This is a vertical bar graph combined with a numeric display.
You can choose from two sizes: Large and Small.
You can adjust the minimum and maximum range, and the scale display changes accordingly automatically.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
For the large bar graph, recommended for use with more than 640 by 400 pixels.
For the small bar graph, recommended for use with more than 480 by 272 pixels.
Details:
When you place this gauge on the screen, the following symbol variables and D-Script will be automatically registered in your project.
Please refer to the included simple manual for instructions on how to change the settings.
- (Symbol Variable) SD_BarGraph02
- (Symbol Variable) SD_BarGraph02_Setting
- (D-Script) SD_BarGraph02
Remarks:
- The download data 'SmartDesign_BarGraph.zip' also includes other Smart Design BarGraphs. If you have already downloaded another Smart Design BarGraph, you do not need to download this part.
- This package file is not available in GP-Pro EX versions before 5.00.000.
