Overview:

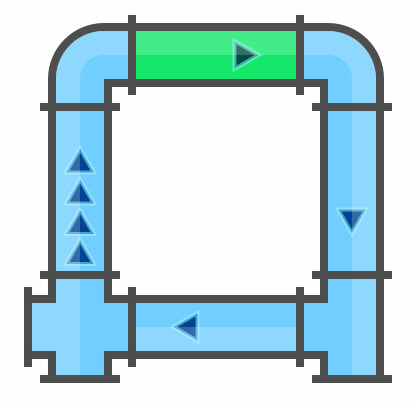

This is a more intuitive pipe part with arrow animation and color change functions.
The flat design with a simple color scheme matches the smartphone-like industrial screen.
Also, it uses BLUE's scaling function, allowing you to scale them freely. The graphic quality does not degrade when scaled, so this makes it suitable for any screen size.
Please see the Details for the features of each part.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, IPC, and PC/AT that can use the BLUE runtime
Target Size:
No restrictions
Details:

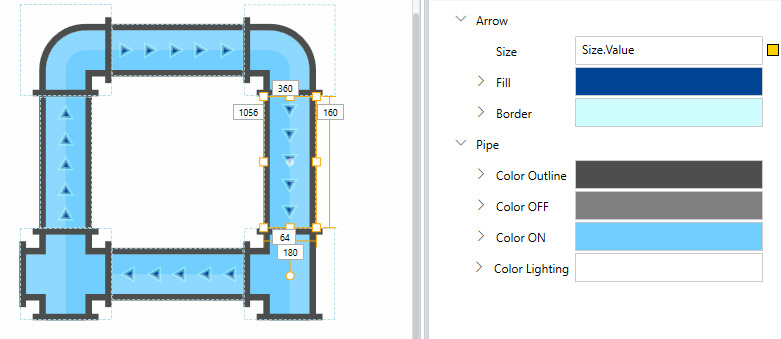

You can freely change the speed/size of the arrows and choose from two arrow animation patterns.
Users can freely set the color, including types such as solid color and gradient, and transparency.

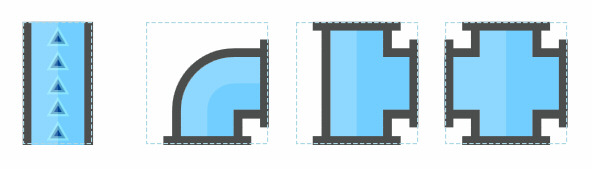

- [ SmartPipe02_Straight.co ] Straight type with arrow
- [ SmartPipe02_L.co ] L-shaped, select 2 light locations
- [ SmartPipe02_2Way.co ] Three-port type, select 2 light locations
- [ SmartPipe02_3Way ] Four-port type
Sample Video:
You can check out the behavior of the Smart Pipe in the following video.
Smart Pipe Overview
Remarks:
Here is Smart Pipe, which matches materials and flat design. You can check out the behavior of the Smart Pipe in the following video.
Smart Pipe 01
