Overview:
This is a more intuitive pipe part with arrow animation and color change functions.
The design has a gradient effect, which suits a realistic industrial screen.
Also, it uses BLUE's scaling function, allowing you to scale them freely. The graphic quality does not degrade when scaled, so this makes it suitable for any screen size.
Please see the Details for the features of each part.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, IPC, and PC/AT that can use the BLUE runtime
Target Size:
No restrictions
Details:

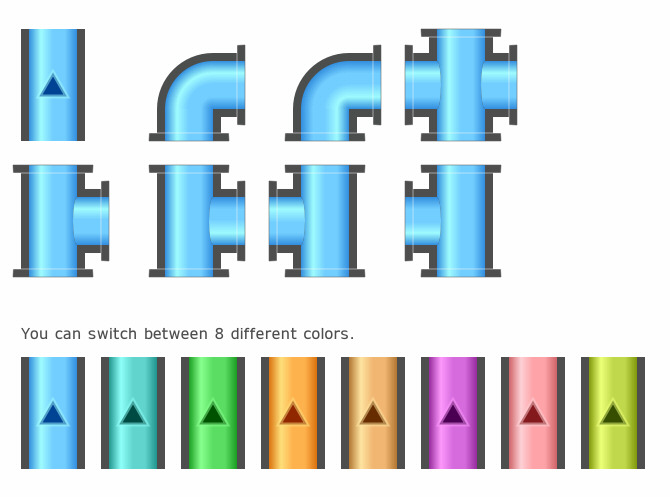

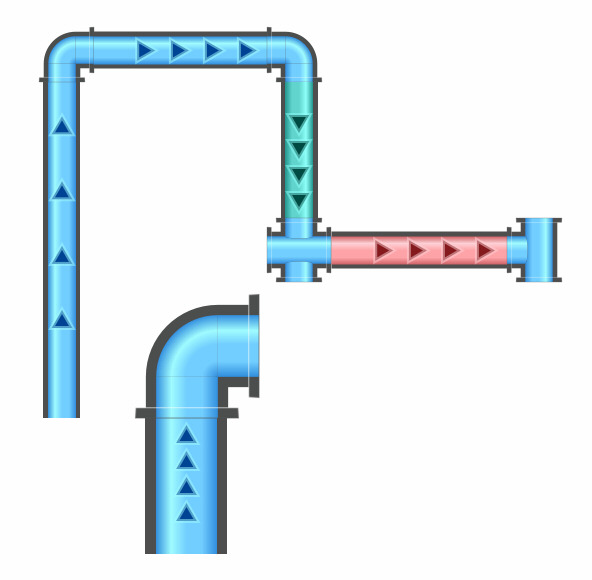

You can freely change the speed/size of the arrows and choose from two arrow animation patterns, and choose from 8 different colors for the pipes and arrows.
- [ SmartPipe01_Straight.co ] Straight type with arrow
- [ SmartPipe01_L1/2.co ] L-shaped, there are two types of lighting
- [ SmartPipe01_2Way1/2/3/4.co ] Three-port type, there are four types of lighting:
- [ SmartPipe01_3Way ] Four-port type
Sample Video:
You can check out the behavior of the Smart Pipe in the following video.
Smart Pipe Overview
Remarks:
Here is Smart Pipe, which matches a realistic design.
Smart Pipe 02
