The STM6000 series in the complement of the ST6000 range brings a new level of visualization to the Basic HMI market which no other basic product has accomplished. We have achieved a superior quality display that improves operability and is unmatched by any other basic product. Also, the product can be installed easily as no tools are necessary and very fast with the unique push-button mounting system through a φ22 mm circular hole. Optimize operations and machine information.
Experience easy installation!
Feature
Refined
We have designed a superior quality display that improves operability and optimizes operations and machine information. An innovative HMI with a sophisticated design that transforms simple machines

Simple & Easy

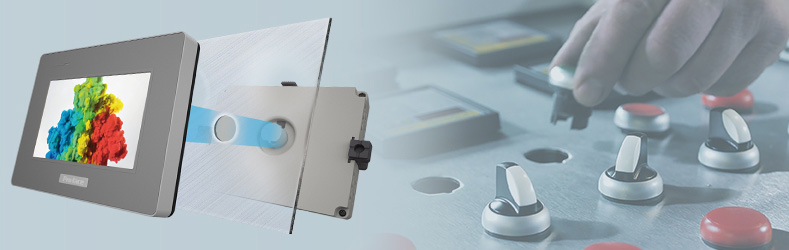

The product can be installed easily as no tools are necessary and very fast with the unique push-button mounting system through a φ22 mm circular hole.

The simple design and interface help increase productivity and efficiency. From installation to operation and maintenance, it is easy in every scene.


Connected & Secured
High connectivity with a rich interface and user-friendly protocols allowing you to connect your devices with ease via multiple interfaces and connect OT to IT with OPC-UA server. Schneider Electric can provide an international standard cyber secured solution for remote expertise who will efficiently diagnose and can remedy issues remotely, and guarantee correct spare part repair. Measure downtime in hours, not days.

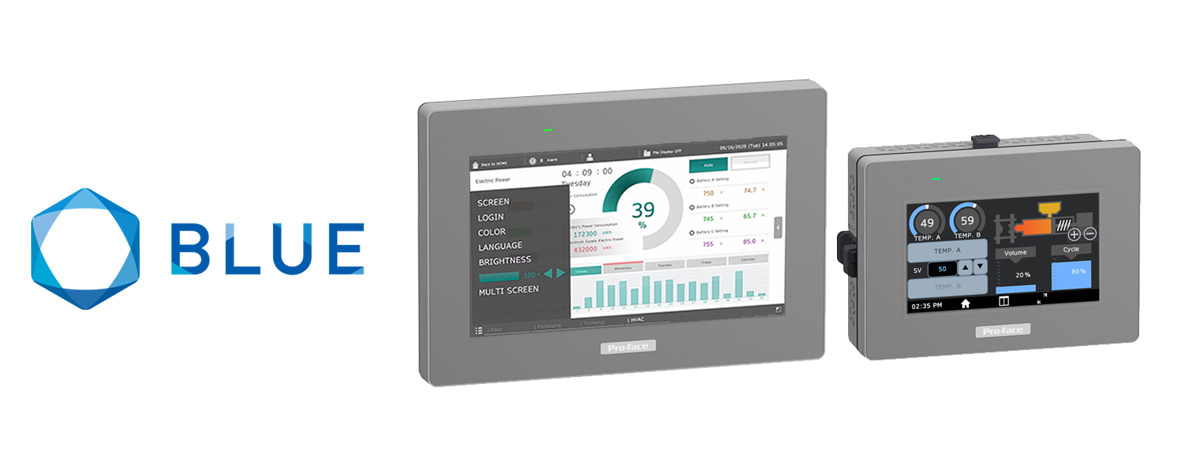

Lineup

STM-6200WA | STM-6400WA | |
---|---|---|
Model No | PFXTM6200WAD | PFXTM6400WAD |
Display | 4.3” Wide (480 x 272) | 7.0” Wide (800 x 480) |
16M colors White LED 16 level brightness control | ||
Touch Panel | Type : resistive film (analog). Service life : 1,000,000 times or more | |
Interface |
COM1: RS-232C/485/422 SubD9 |
|
Input Voltage | 19.2 to 28.8 Vdc | |
Certifications | IP65, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure), CE, UL and cUL, RCM, KC, EAC, RoHS, WEEE |
