[Hitachi Industrial Equipment Systems Co.,ltd] WJ200_Series Inverter Connection(GP4000/LT4000M Series)

Summary

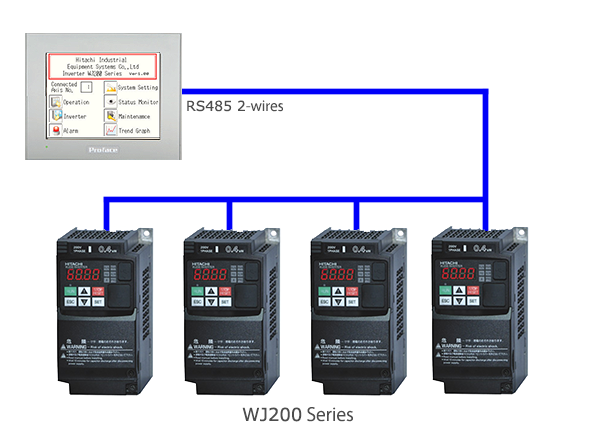

You can connect GP4000, LT4000M series to the inverter “WJ200 Series” made by Hitachi Industrial Equipment Systems Co., ltd and display a state of the inverter.

Details


Supported Connection Devices

ManufacturerSupported Model
Hitachi Industrial Equipment Systems Co.,ltdInverter WJ200 Series

Target HMI

Related UnitsGP4000 SeriesLT4000M Series
ResolutionQVGA (320 x 240 pixels)
Related ModelsGP-4301TLT-4301TM
Notes
  • GP-4301T, LT-4301TM support this connection device sample. If you use the other models, you can change a model in the GP-Pro EX project file. For further information, please refer to the manual included.
  • GP-Pro EX Ver. 3.12.000 or later is required.
  • We do not guarantee that the operation of this sample will be uninterrupted or error-free.
  • If you use the other models, you can change a model in the GP-Pro EX project file. For further information, please refer to the manual included.

Features

  • Easy connection with the inverter
  • Parameter setting (e.g. acceleration and deceleration) from the touch panel
  • Monitoring alarm information on the inverter
  • Checking a change in the state with a trend graph
  • Registration and selection of a speed level (from 4 levels) for inverter operation
  • Registration of descriptions of alarms which may be generated in the inverter
  • Monitoring the state and operation

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.

Download file

samples
LT4000M Series
1.13 MB (1,183,002 Byte)
samples
GP4000 Series
1.13 MB (1,181,247 Byte)
