[ORIENTAL MOTOR Co. Ltd.] Brushless DC Motor Connection(GP4000/LT4000M/LT3000 Series)

Summary

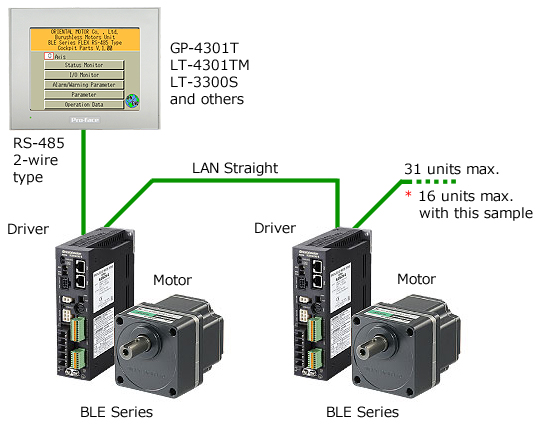

You can connect GP4000/GP3000/LT4000M/LT3000 Series to a motor driver to operate and surveil a motor.

Details


Supported Connection Devices

ManufacturerSupported Model
ORIENTAL MOTOR CO., LTD.Brushless DC Motor BLE Series FLEX RS-485 Communication Type

Target HMI

Related UnitsGP4000 Series
LT4000M Series
LT3000 Series
ResolutionQVGA (320 x 240 pixels)
Related ModelsGP-4301T
LT-4301TM
LT-3300S
Notes
  • The PDF file of an explanatory material is also compressed into this file.
  • No PDF manual for LT-4301TM is included, but screen transition and others are the same as GP4000, so the manual for GP4000 can be referred.

Features

  • Monitor various BLE series information without using dedicated PC software.
  • Connect up to 16 axes worth of BLE series units simultaneously. (Provided you do not exceed 16 axes, you can connect an arbitrary number of axes and the number of each axis is also arbitrary.)
  • Send JOG Operation instructions from an LT series or GP series unit.
  • Upload the motor's parameters and operation data to a USB memory device through the USB port that the LT series and GP series units are equipped with as standard. This uploaded information can then be reused by downloading it to other motors that are connected to the LT series and GP series units. The operation data is uploaded to a USB memory device as a CSV file, which can be used as general-purpose data.
  • The details of occurring alarms are displayed as text, which is useful when performing the primary maintenance on site.

Note

  • GP-4301T, LT-4301TM and LT-3300S support this connection device sample.
  • GP-Pro EX Ver. 3.01.203 or later is required. GP-Pro EX Ver. 3.12.000 or later is required for LT-4301TM.
  • We do not guarantee that the operation of this sample will be uninterrupted or error-free.

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.

Download file

samples
QVGA (320 x 240 pixels)
3.44 MB (3,605,636 Byte)
