Trend Graph - Historical Trend Template 01 (Unsigned)
Updated: 2/24/2026
Fixed some D-Script.
Overview:

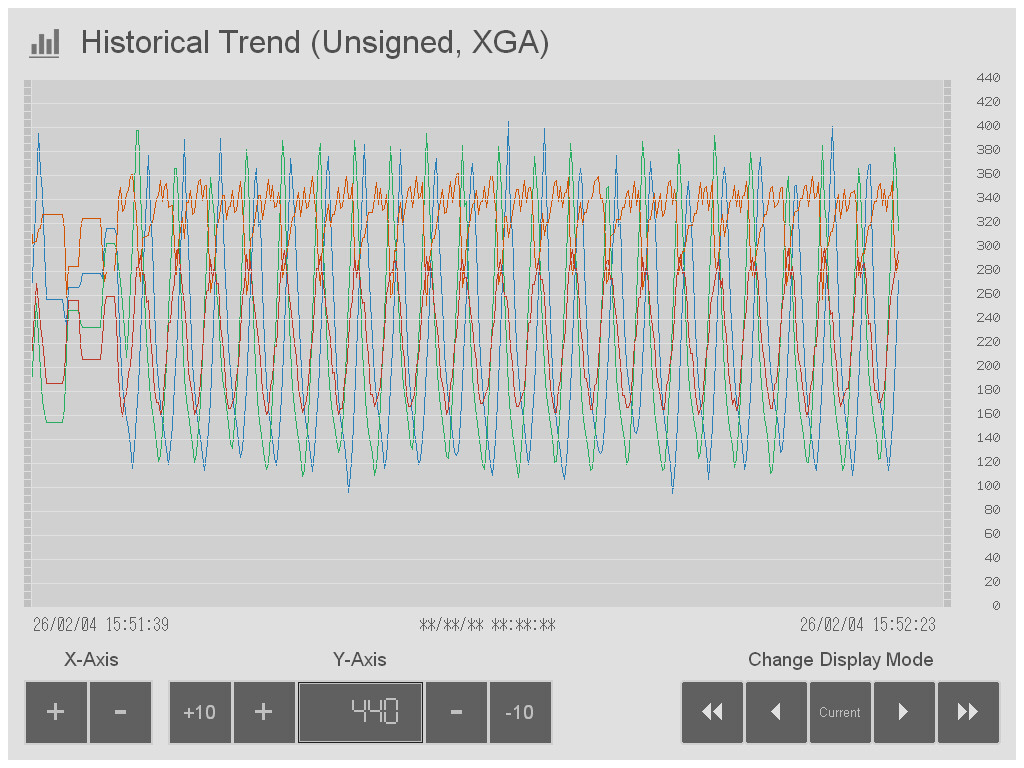

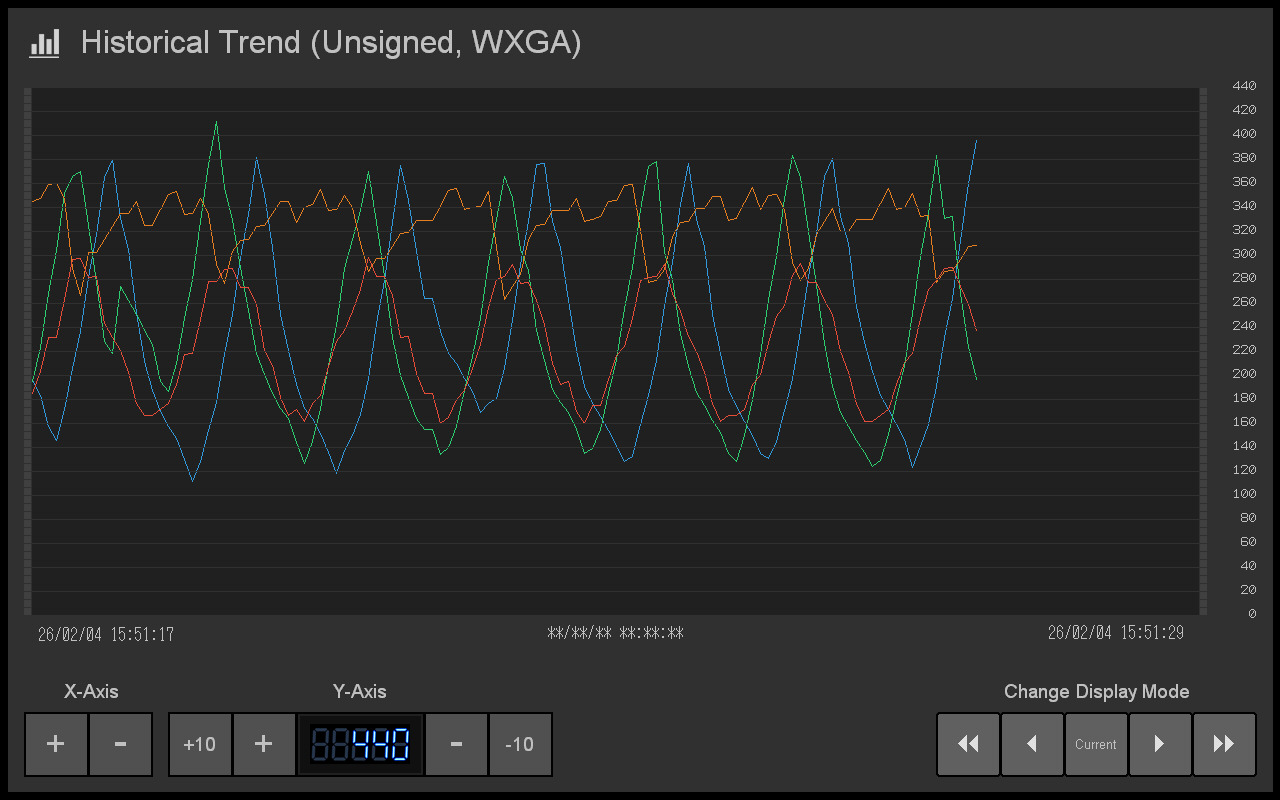

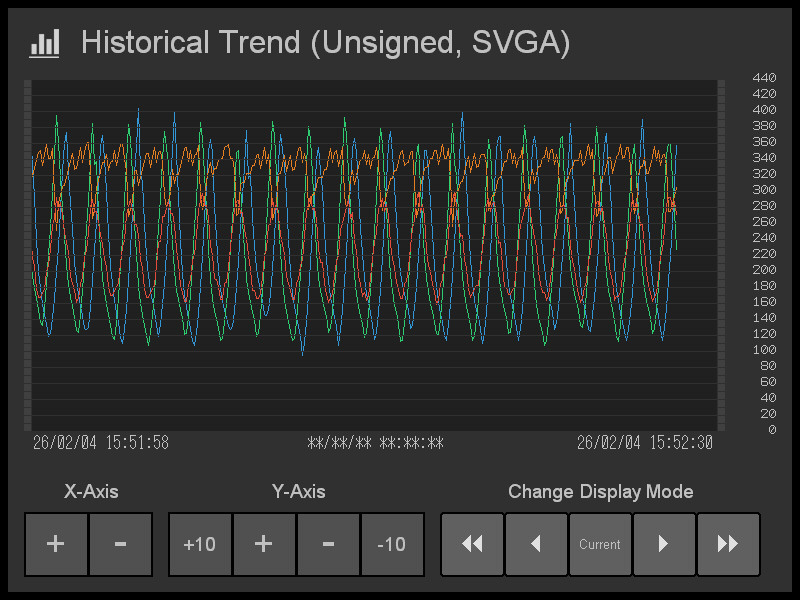

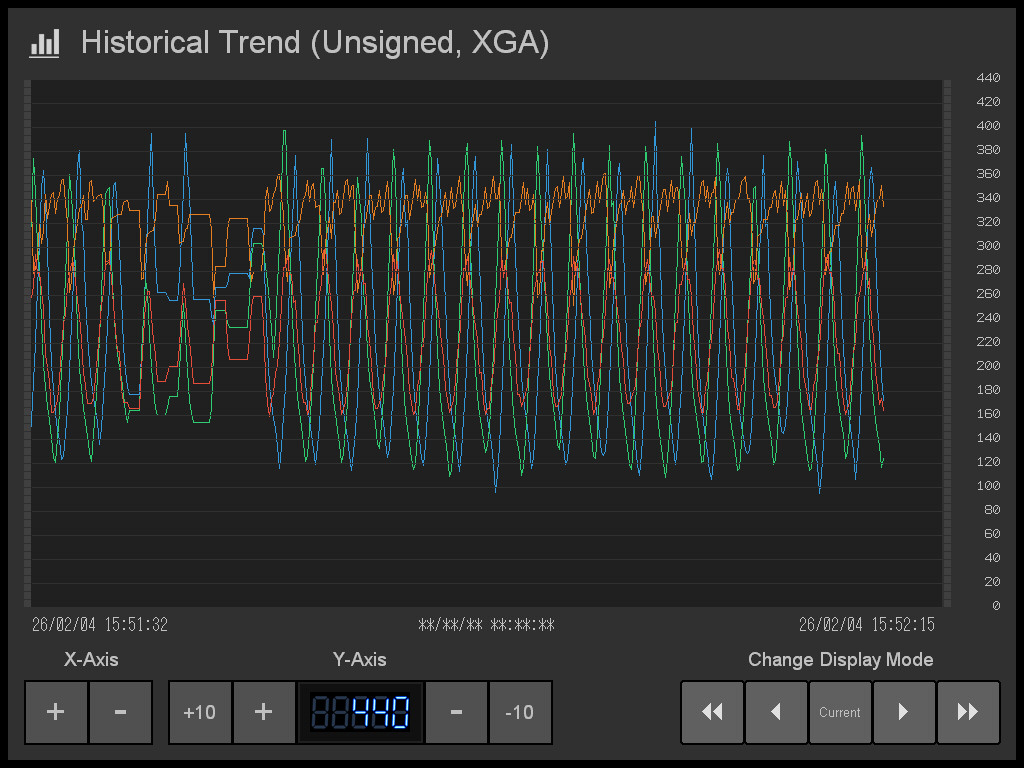

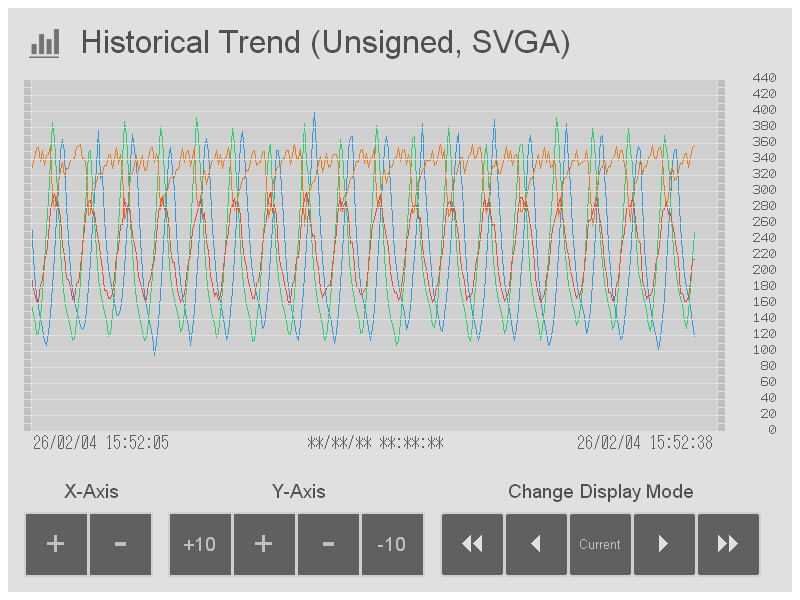

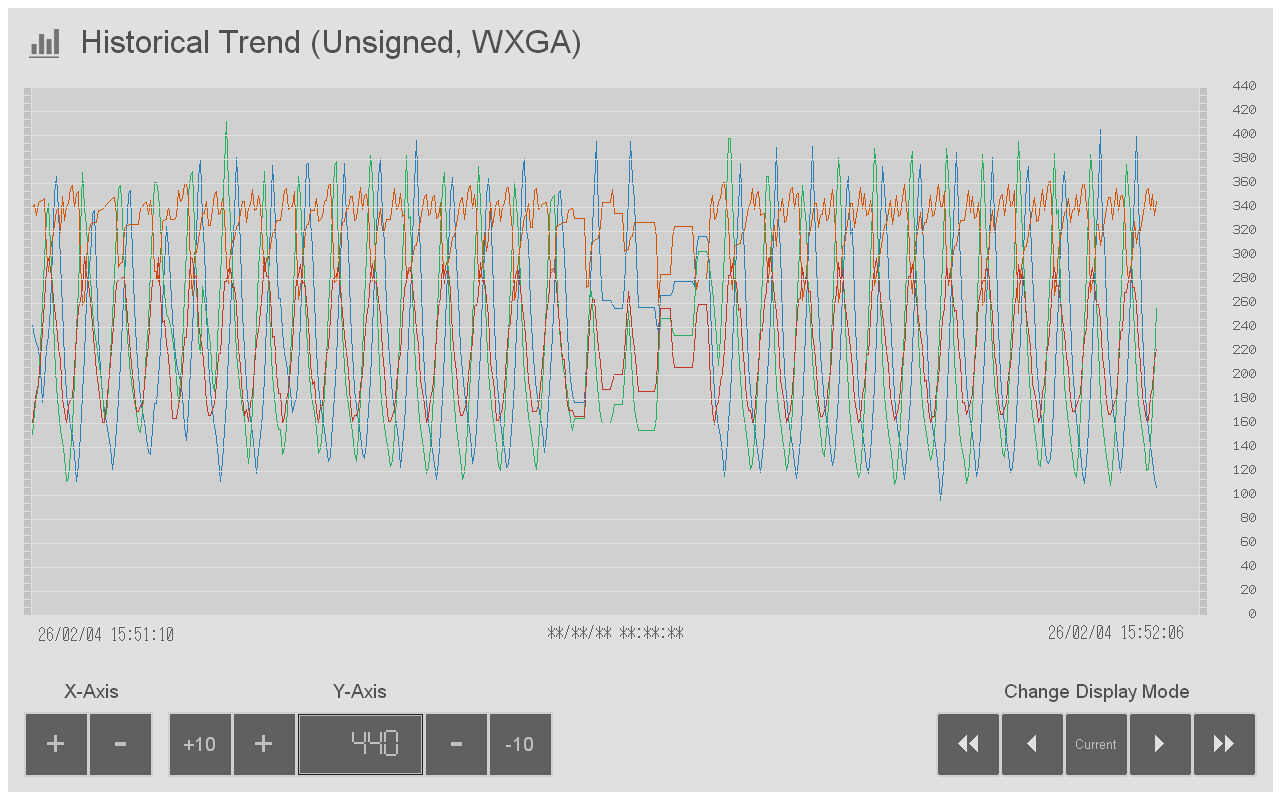

This is a simple historical trend graph that suits modern design screens.
Users can freely scale the X and Y axes at runtime.
- X Axis Scale Range: 1 to 8 times
- Y Axis Scale Range: 22 to 65535
Target Model:
All HMI models that support GP-Pro EX
Target Size:
Recommended for use of more than 800 by 600 pixels.
Remarks:
- If you want to display separator lines for each line, you will need to configure the screen. Please refer to the included documentation for details.
- This package file is not available in GP-Pro EX versions before 5.00.000.
Categories
PKG Objects
Software version
5.00.000
