#bit #toggle #set #reset #button #lamp #converter

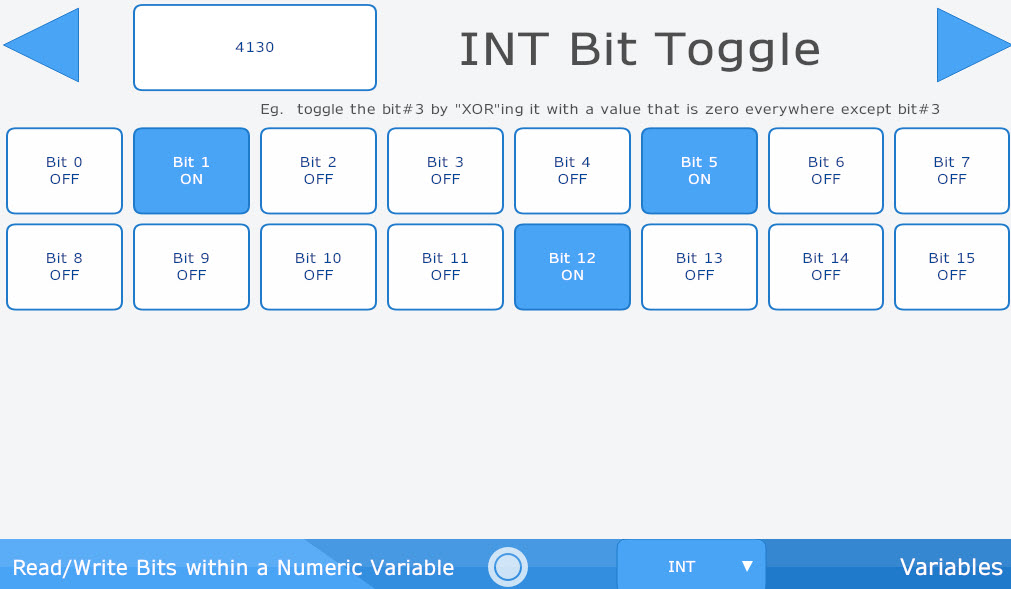

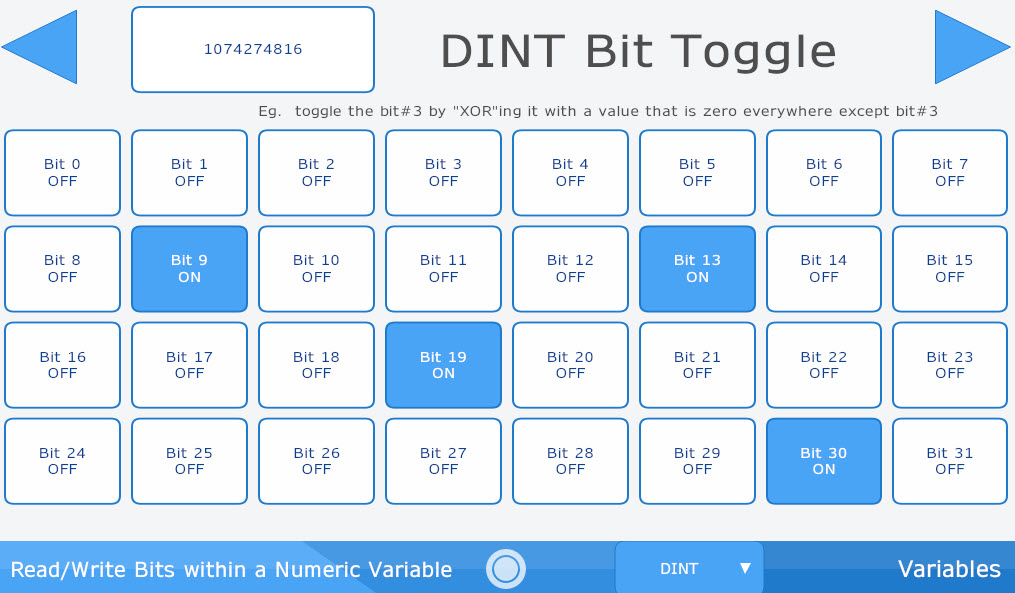

Display - Read-Write Bits within a Numeric Variable
Use XOR, AND and OR statements to actuate bits within numeric variables. SET, RESET, TOGGLE supported.
Uses converter applied to the numeric variable to create a lamp for a single bit.
Supported variable types:
- SINT
- USINT
- BYTE
- INT
- UINT
- WORD
- DINT
- UDINT
- DWORD
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 480 by 272 pixels.
Categories
Samples
Software version
3.4
