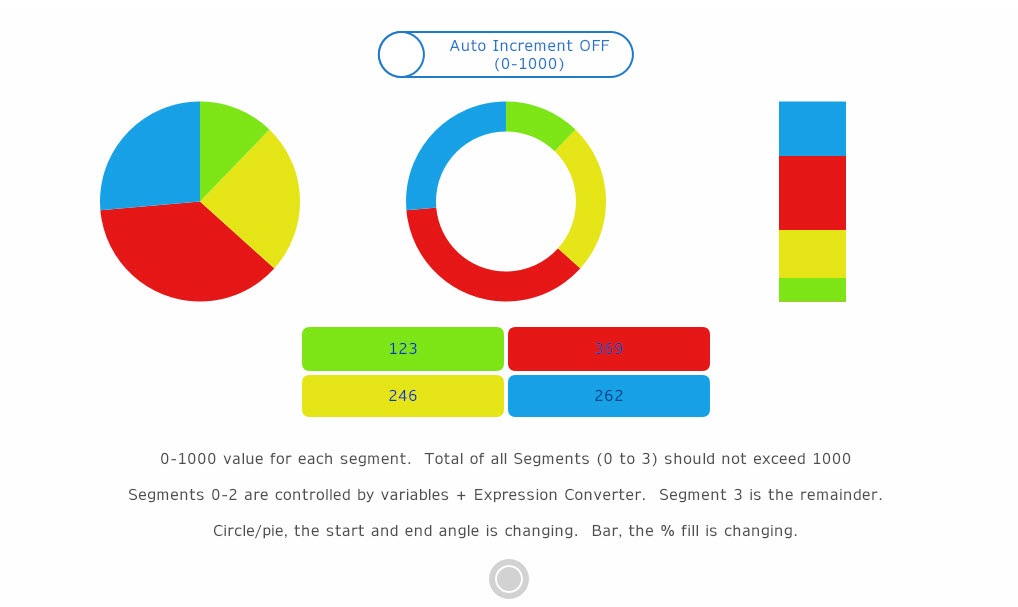

Three simple statistical graph parts:  Pie, Circle and Bar.

Script is used to control auto increment ON/OFF.   All parts use a combination of a single array variable + converters + object binding to achieve the behaviours.

Variables assumed to be 0-1000 for each segment.  Total of all segments (0 to 3) should not exceed 1000.   To adjust ranges change variable range and converter range.

Pie Graph:

• Grid
• 4 x Arch
  • 1 x INT array variable
  • 3 x Expression Converters
  • Graphic Object Binding
  • Start angle, End angle, Inner Radius binding



Circle Graph:

• Grid
• 4 x Arch
  • 1 x INT array variable
  • 3 x Expression Converters
  • Graphic Object Binding
  • Start angle, End angle, Inner Radius binding



Bar Graph:

• Grid
• 4 x Rectangle
  • 1 x INT array variable
  • 3 x Expression Converters
  • Fill Animation (%)
  • Z-order



Numeric Display:

• Grid
• 1 x Numeric Displays
  • 1 x INT array Variable
  • 1 x Expression Converter (Blue - Segment3)
  • Interlock
  • Graphic Object Binding

Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 480 by 272 pixels.
