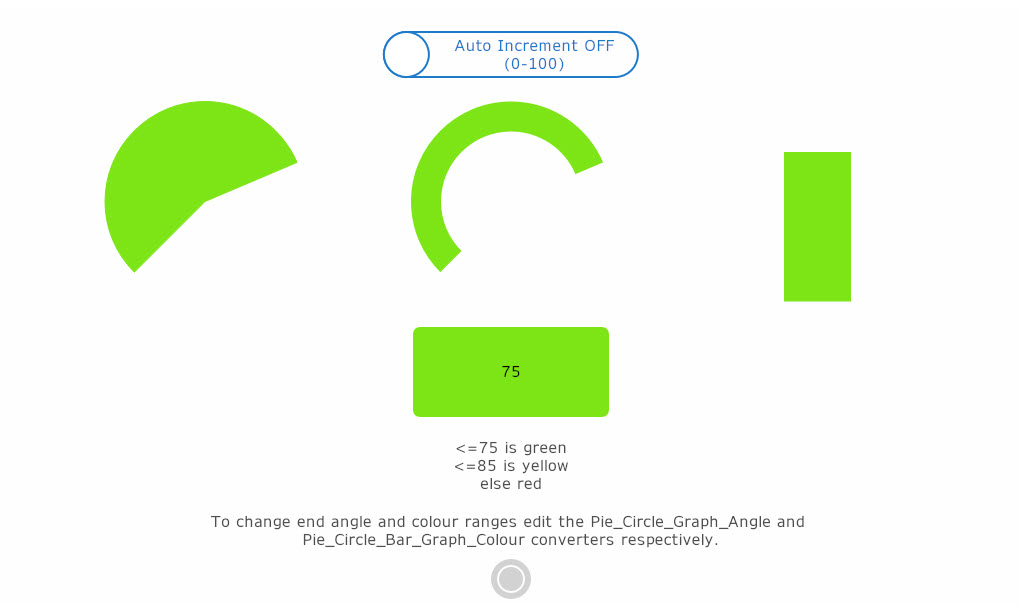

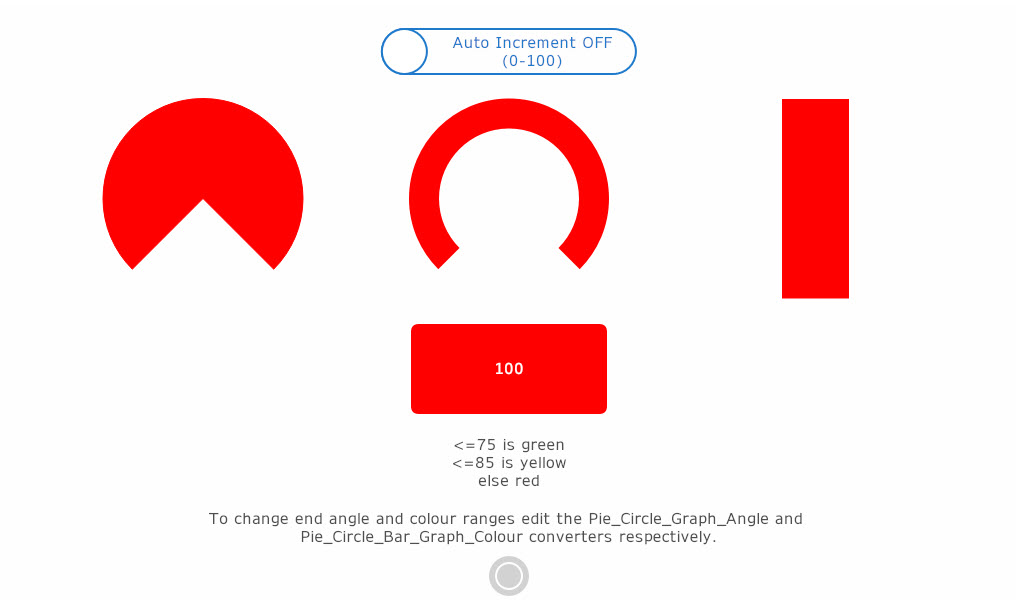

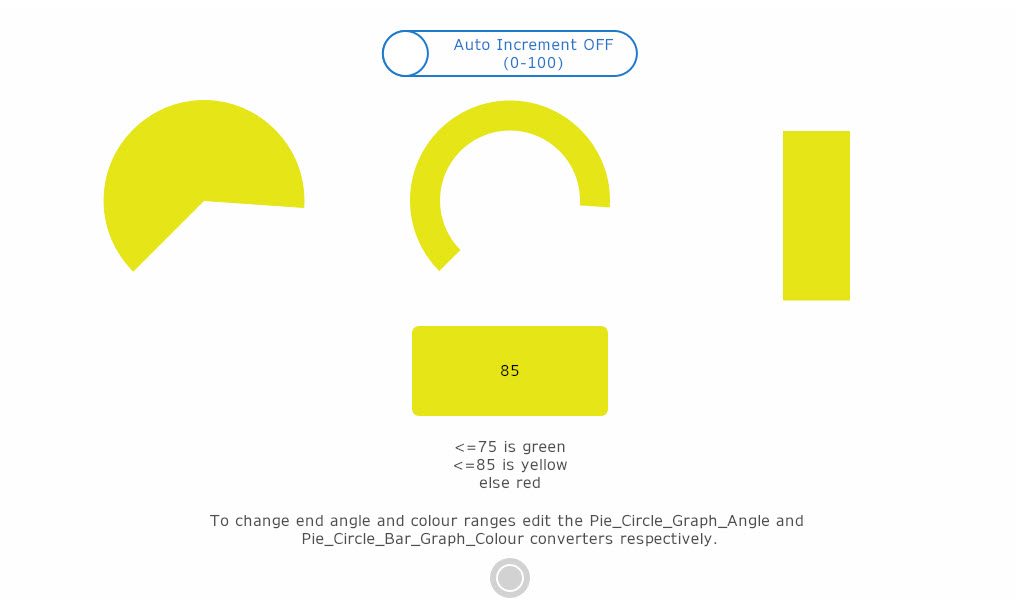

A pie, circle and bar graph with 3 ranges (green, yellow, red).  When a threshold is reached the entire graph changes colour.

Pie Graph:

• 1 x Arch with dynamic end angle and dynamic fill and border colours
  • End Angle linked variable using a scale converter
  • Fill and Border colours set to RGB and bound to a variable using a range converter
• 2 x Range Converter
  • to assign the fill and border colour based on a numeric range with a numeric input and colour output
  • to assign the font colour of the numeric display with a numeric input and colour output
• 1 x Scale Converter, to scale the angle of the arches
• 1 x INT variable with a range of 0-100 and initial value of 50



Circle Graph:

• 1 x Arch with dynamic end angle and dynamic fill and border colours
  • End Angle linked variable using a scale converter
  • Fill and Border colours set to RGB and bound to a variable using a range converter
• 2 x Range Converter
  • to assign the fill and border colour based on a numeric range with a numeric input and colour output
  • to assign the font colour of the numeric display with a numeric input and colour output
• 1 x Scale Converter, to scale the angle of the arches
• 1 x INT variable with a range of 0-100 and initial value of 50



Bar Graph:

• 1 x Rectangle with dynamic end angle and dynamic fill and border colours
  • Fill value directly assigned to INT variable
  • Fill colour set to RGB and bound to a variable using a range converter
• 1 x Range Converter
  • to assign the fill and border colour based on a numeric range with a numeric input and colour output
  • to assign the font colour of the numeric display
• 1 x INT variable with a range of 0-100 and initial value of 50



Numeric display:

• 1 x Numeric Display for entering the graph value
• 1 x Range Converter
  • to assign the font colour of the numeric display
• 1 x Scale Converter, to scale the angle of the arches
• 1 x INT variable with a range of 0-100 and initial value of 50



Screen Script:

• When auto increment toggle switch is on, increase the value of the INT variable to 100 and loop back to 0.

Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 480 by 272 pixels.
