Yaskawa Inverter GA700 Device Connection Sample

Summary

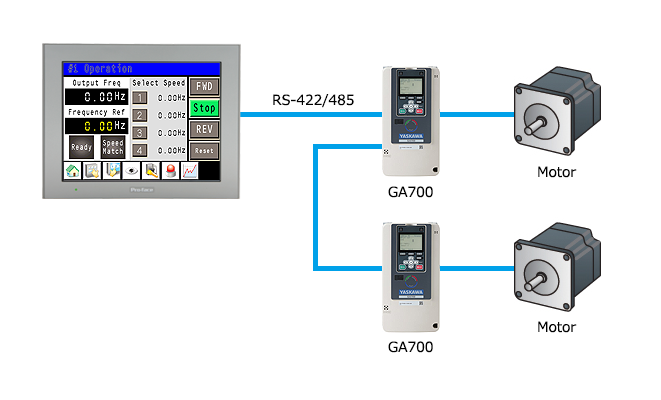

This sample project file is a sample program for connecting Inverter GA700 Series made by YASKAWA Electric Corporation to a GP4000 Series or LT4000M Series unit via a Serial I/F in order to configure parameter settings and monitor status on a display console with a touch panel.

Details

Posted: Apr. 7, 2017

Supported Model

ManufacturerProduct NameSeriesModel
YASKAWA Electric CorporationInverterGA700 SeriesCIPR-GA70A********
The product shown above has a communication interface of RS-485 (MEMOBUS/Modbus) as standard.

Features

  • Able to connect to the Inverter directly.
  • Able to configure parameter settings such as acceleration and deceleration on a display console with a touch panel.
  • Able to monitor alarm information of the Inverter.
  • Able to check changes of status with trend graphs.
  • Able to save sampled data in a USB flash drive or a SD card.
  • Able to check I/O status of the Inverter.
  • Able to select register 4 types of speed in addition to drive operation of the Inverter.
  • All the alarms that occur on the Inverter and their details have already been registered - Extracted from the manual made by YASKAWA Electric Corporation -.
  • Various monitoring is possible. (Input / Output signals, Status, Operation Monitor).

Download

OverviewThis sample project file is a sample program for connecting Inverter GA700 Series made by YASKAWA Electric Corporation to a GP4000 Series or LT4000M Series unit via a Serial I/F in order to configure parameter settings and monitor status on a display console with a touch panel.

* This is a self-extracting file. Double-click on the file to open the sample files and PDF manual.
Supported ModelsGP-4501T / GP-4301T / LT-4301TM

* If you use the other models, you can change a model in the GP-Pro EX project file. For details, please refer to the PDF manual.
Supported SoftwareGP-Pro EX Ver. 4.00.000 or later

We do not guarantee that the operation of this sample will be uninterrupted or error-free.

Terms of use / Cautions

Please acknowledge the following terms of use before you use our download service.
Download of any file signifies your agreement to the terms of use.
Terms and conditions

Download file

samples
for GP4000 Series / VGA (640×480)
2.00 MB (2,096,998 Byte)
samples
for GP4000 Series / QVGA (320×240)
2.00 MB (2,101,195 Byte)
samples
for LT4000M Series / QVGA (320×240)
2.00 MB (2,101,304 Byte)

Update History

[Ver. 100] (2017/4/7)
New
