[SMC Corporation] Air Management System AMS20 / AMS30 / AMS40 / AMS60

Summary

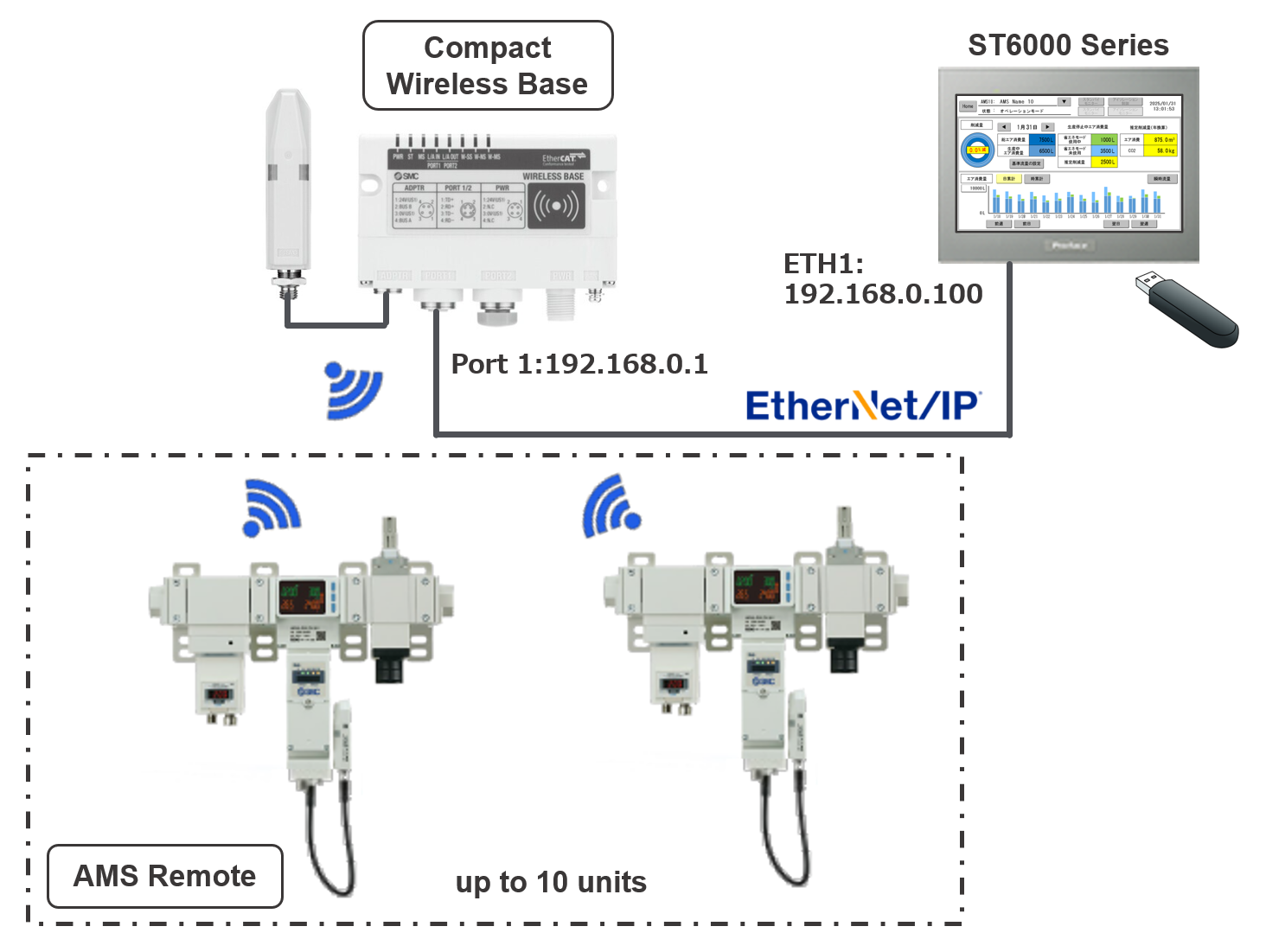

This sample project file is designed to connect the Air Management System (AMS) models AMS20/AMS30/AMS40/AMS60, manufactured by SMC Corporation, with ST6000 series. By using this project file, users can visualize the air consumption reduction effects when utilizing the AMS. One compact wireless base can be connected to up to 10 AMS remote-type units.

Details

Posted: Oct. 1, 2025

Supported Connection Devices

ManufacturerCategory / SeriesModel
SMC CorporationAir Management System*1 *2AMS Remote:AMSxx-xxx-SA-xLx-x
Industrial Device Communication
Equipment / Wireless System
EXW1 Series*2
Compact Wireless Base:EXW1-BENAC1

*1 The applicable models are standalone (SA) type. This project file supports connection of up to 10 units.

*2 For details on model specifications and the equipment required for connecting AMS to compact wireless bases—such as wireless adapters—please refer to the catalogs and manuals provided by SMC Corporation.

Target HMI

SeriesResolutionDisplay unit type of the sample project file *3Screen Editor
ST6000 Series1024 × 600 dot (WSVGA)ST-6500WAGP-Pro EX Ver.4.09.600 or later

*3 This project file is exclusively for the ST-6500WA. Please note that other models are not supported.

Features

  • Estimated reduction can be calculated based on air consumption and AMS operating status.
  • Estimated reduction can be converted and displayed in terms of CO₂ and Monetary value.
  • Air consumption and Estimated reduction can be visualized using pie charts.
  • A time-series bar graph can be used to compare energy-saving mode usage versus without energy-saving mode.
  • Instantaneous flow rate and Pressure can be displayed in a trend graph.
  • Air consumption, Instantaneous flow rate, Pressure, AMS status, and other data can be exported to a CSV file (USB storage).
  • Standby and Isolation signals can be output to the AMS remote.


We do not guarantee that the operation of this sample will be uninterrupted or error-free.

Terms of use / Cautions

Please acknowledge the following terms of use before you use our download service.
Download of any file signifies your agreement to the terms of use.
Terms and conditions



Attention

The downloaded file includes a GP-Pro EX project file and technical documentation.
When sending the project file to a compatible HMI, please use GP-Pro EX version 4.09.600 or later.

If you do not have GP-Pro EX, you can still transfer the project file to the HMI by downloading the transfer tool from our website.
Transfer Tool

For instructions on how to transfer the project file, please refer to Chapter 34 Transfer in the Reference Manual.
GP-Pro EX Reference Manual: 34 Transfer

Download file

Update History

[Rev. 01] (2025/10/10)

New
