{"searchBar":{"inputPlaceholder":"Search by keyword or ask a question","searchBtn":"Search","error":"Please enter a keyword to search"}}{}{"support":{"yesButton":"Yes","noButton":"No","feedback":{"title":"What can we do to improve?"},"submitButton":"Submit","successMessage":"Thank you for your feedback","title":"Did this answer your question?","feedbackPercentLabel":"of people found this helpful","captcha":{"error":"Please check the box"}}}GPW6000 / How can I display the System Settings?
There are two ways to access the system settings after the initial setup:
- Display on Device: Display the System Settings on the product screen.
- Remote Access from a PC: Connect the product to a computer and display the System Settings using a web browser on the computer.
NOTE: To display System Settings on your computer, you need to change the setting under System Settings > Security > External Access to enable in advance.
Display on Device
On the product screen, switch to the system settings screen from the web server page.
1) From the top part of the screen, slowly swipe downward with force. The title bar of the browser appears.

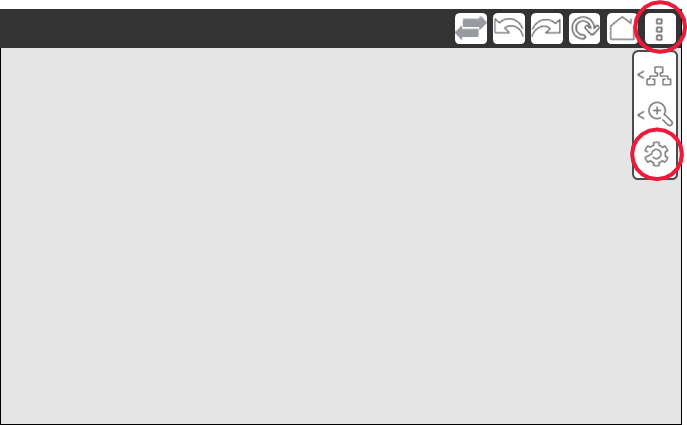

2) Touch the Menu icon located on the right side of the title bar. This will open a submenu. From the submenu, select the Settings icon.
3) The System Settings display. If "Use password" is set, the login screen displays. Enter your username and password to log in.
1) Attach the product to the network with an Ethernet cable in the product's LAN port. Connect the computer to the same network as the product by changing the computer's IP address and subnet mask.
NOTE: If you are using Windows 11, set the IP address as follows:
(1) From the Start menu, select Settings > Network & Internet.
(2) Click Properties next to Ethernet.
(3) Click Edit next to IP Address Assignment, select Manual from the drop-down menu, and then click Save.
(4) Enable IPv4, then enter the IP address, subnet mask, etc.
2) Open a browser on the computer and enter the following URL.
https://<IP address>:8443/
Substitute your product's IP address for "<IP address>".
3) When the connection is established, the HMI device send a certificate to use for the encryption.

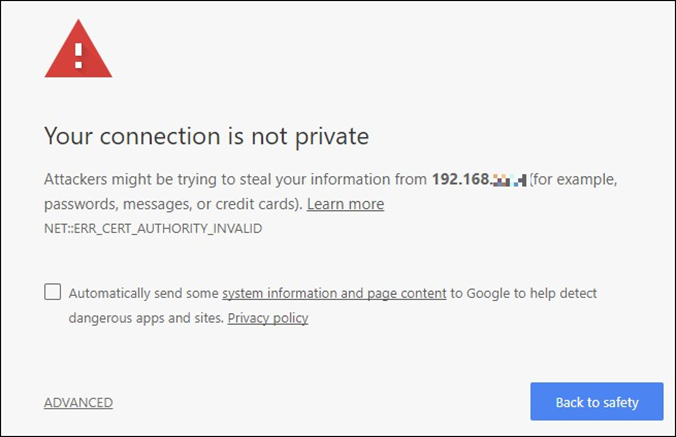

Since the certificate is not signed from a Certificate Authority you will get a warning message. Click on ADVANCED options and choose to proceed.
4) The System Settings display. If "Use password" is set, the login screen displays. Enter your username and password to log in.
