Replacement Guidebook introduces comparison of current using models and replacement method.
Please utilize this book and information. ( For download, Pro-face Support Member registration is required)
Specification Comparison

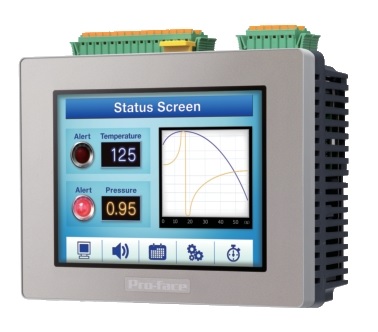

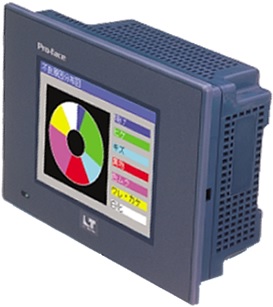

| LT Type A (Color) | LT-4301TM (Modular Type DIO) | |
|---|---|---|
 |  | |
| Model No. | GLC150-SC41-XY32SK-24V | PFXLM4301TADDK |
| Display Type | STN Color LCD | UP! TFT Color LCD |
| Display Colors | 64 colors | UP! 65,536 colors |
| Display Resolution | QVGA(320×240 pixels) | |
| Panel Cutout Dimensions (mm) | W191.5×H141.5mm | NEW! φ22mm*1 |
| External Dimensions (mm) | W207×H157×D75.8mm | W63×H129.4×D76.22mm |
| Touch Panel Type | Resistive film (Matrix) | NEW! Resistive film (Analog)*1 |
| Memory (Application) | 1MB | UP! 16MB |
| Memory (SRAM) | 96KB | UP! 128KB |
| Control Memory (Program) | 128KB | UP! 132KB |
| Control Memory (SRAM) | 32KB | UP! 128KB |
| Serial I/F (COM1) | - | NEW! Serial I/F (RS-232C/485) *1 |
| Ethernet I/F | - | NEW! 10BASE-T/100BASE-TX |
| DIO I/F Sink Type | DIO 32 points Input : Sink/Source 16 points Output：Sink 16 points | DIO 32 points Input : Sink/Source 20 points Output：Source 12 points |
| USB Type A | - | NEW! ✔ *1 |
| Tool Connector I/F | ✔ | - |
| Printer I/F | - | NEW! USB *1 |
| Alarm Output | ✔ | - *1 |
*1 There are some restrictions regarding replacement with recommended substitutes. For further information, please refer "Replacement Guidebook"
◆ DIO Interface (Input) Specifications
| LT Type A (Color) | LT-4301TM (Modular Type DIO) | |
|---|---|---|
| Rated Voltage | DC24V | |
| Max. Allowable Voltage | DC26.4V | DC30.0V |
| Input Type | Sink/Source Input | |
| Rated Current | 5mA (24V) | I0 to I1 : 7.83mA (DC24V) I2 to I19 : 5.00mA (DC24V) |
| Input Resistance | 4.7kΩ | I0 to I1 : 3.2kΩ (DC24V) I2 to I19 : 4.9kΩ (DC24V) |
| Standard Operating Range | ON voltage : DC21V more OFF voltage : DC7V less | ON voltage : DC15V more OFF voltage : DC5V less |
| Input Delay | 10ms less | OFF→ON 1.5μs ON→OFF I0 to I1 : 1.9μs I2 to I19 : 0.5ms to 20ms |
| Common | 1 | I0 to I1 : 1 I2 to I19 : 3 |
| Common Structure | 16 points/1 common | I0 to I1 : 2 points/1 common I2 to I19 : 18 points/3 common |
| External Connection | 40-pin connector (also used for output) | Spring Clamp Terminal Block |
| Input Points | 16 points | 20 points |
| Input Signal Indication | LED lights up for each point ON (logical side) | No LED display |
| Isolation Method | Photo coupler isolation | |
| External Power Supply | For Signal:DC24V | |
◆ DIO Interface (Output) Specifications
| LT Type A (Color) | LT-4301TM (Modular Type DIO) | |
|---|---|---|
| Rated Voltage | DC24V | |
| Rated Voltage Range | DC24V±10% | DC19.2 to 28.8V |
| Output Type | Sink Output | |
| Max. Load Current | 0.2A/1 points, 1.6A/1 common | 0.3A/1 points |
| Output Voltage Drop | DC2.5V less | DC1.5V |
| Output Delay | 2ms less | OFF→ON Q0 to Q1 : 30μs Q2 to Q11 : 50μs ON→OFF Q0 to Q1 : 0.3ms Q2 to Q11 : 1.0ms |
| Leakage Current When OFF | 0.4mA less | |
| Output Classification | Transistor Output | Q0 to Q1 : MOS-FET Q2 to Q11 : Transistor Output |
| Common | 1 | Q0 to Q1 : 1 Q2 to Q11 : 2 |
| Common Structure | 16 points/1 common | Q0 to Q1 : 2 points/1 common Q2 to Q11 : 10 points/2 common |
| External Connection | 40-pin connector (also used for input) | Spring Clamp Terminal Block |
| Output Protection Classification | Output is unprotected | |
| Internal Fuse | 3.5A, 125V Chip Fuse (non-replaceable) | 2A, 125V Chip Fuse (non-replaceable) |
| Surge Suppression Circuit | Diode | Mov (Metal Oxide Varistor) |
| Output Points | 16 points | Q0 to Q1 : 2 points Q2 to Q11 : 10 points |
| Output Signal Indication | LED lights up for each point ON (logical side) | No LED display |
| Isolation Method | Photo coupler isolation | |
| External Power Supply | For Signal:DC24V | |
