PFXFP6600TMD

PFXFP6600TMD

PF_CP21209

12.1 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC

Main
Product or component type
Touch panel screen
Range of product
FP6000
Integrated connection type
DVI-D video port
USB 2.0 connector USB type B
USB 2.0 connector USB type A at 1.5 Mbit/s
Complementary
Display size
12.1 inch
Aspect ratio
4:3
Display resolution
1024 x 768 pixels XGA
Display colour
16 million colours
Pixel resolution
1024 x 768
Inrush current
30 A
Device mounting
Panel mounting
Direct mounting VESA
Power consumption in W
17.6 W (maximum)
Display type
LED not replaceable
Colour TFT LCD
Touch panel
Multi touch analogue resistive
Terminal type
Touchscreen display
Supply voltage limits
18…31.2 V DC
Type of installation
Indoor installation
Cut-out dimensions
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Width
315 mm
Height
241 mm
Depth
Enclosure : 67.5 mm
Net weight
3.6 kg
Environment
Standards
CE
FCC part 15
UL 61010-2-201
CSA C22.2 No 61010-2-201
Ambient air temperature for operation
0…55 °C
Pollution degree
2
Vibration resistance
1 gn (f = 5…9 Hz) single amplitude conforming to IEC 61131-2
1 gn (f = 9…150 Hz) fixed amplitude conforming to IEC 61131-2
1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Storage Relative Humidity
10…90 % without condensation
Environmental characteristic
Dust resistant 0.1 mg/m3 (non-conductive)
Corrosive gas free
Product certifications
RCM
KC
UKCA
DNV (except 22" wide display)
EAC
ATEX zone 22 dust
ATEX zone 2
IECEx zone 2 (DC model, front USB cover must be locked with screw)
IECEx zone 22 (DC model, front USB cover must be locked with screw)
CULus Class 1 Division 2
Operating altitude
2000 m
Shock resistance
147 m/s² conforming to IEC 61131-2
147 m/s² 3 shocks in each direction X, Y and Z
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
41.0 cm
Package 1 Width
15.0 cm
Package 1 Length
41.0 cm
Package 1 Weight
4.1 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Recyclability potential, in %
55
Total lifecycle Carbon footprint
993 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
218 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.5 kg CO2 eq.
Carbon footprint of the installation phase [A5]
1 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
770 kg CO2 eq.
Mercury free
Yes
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
4 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
993
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Dimensions Drawings
Dimensions

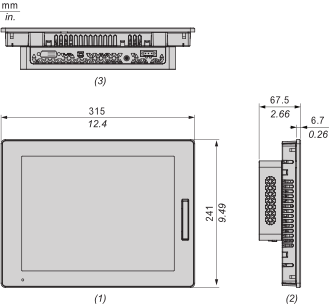

External Dimensions


(1): Front

(2): Left

(3): Bottom

Connections and Schema
Mounting

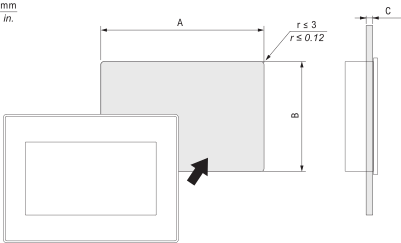

Panel Cut Dimension


A

B

C

mm

in.

mm

in.

mm

in.

301.5 (+1/-0)

11.87 (+0.04/-0)

227.5 (+1/-0)

8.96 (+0.04/-0)

1.6...5

0.06...0.2

Mounting Orientation


(1): Power connector

Note: For portrait orientation mounting, make sure the screen editing software supports the function.

Mounting Angle

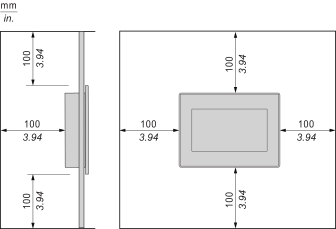

Clearance
