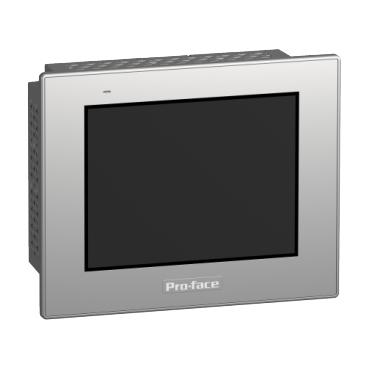

Display type
Colour TFT LCD
Display colour
262000 colours
Display resolution
640 x 480 pixels VGA
Touch panel
Single touch analogue resistive
Backlight lifespan
25000 hours with white
Brightness
16 levels via touch panel
[Us] rated supply voltage
24 V DC
Input voltage limits
19.2...28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Memory description
User data memory 64 MB
Backup memory 320 kB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C/RS422/RS485, transmission rate: 2400...187500 bps compatible with Siemens MPI
USB 2.0 type A
USB 2.0 type micro B
Ethernet female RJ45 10BASE-T/100BASE-TX
Maximum power consumption in W
11.3 W
8 W when power is not supplied to external devices
5.6 W when backlight is OFF
Data format
8 bits, no parity, 1 or 2 stop even or odd
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
By 4 screws conforming to IEC 61131-2
conforming to IEC 61000-6-2
Discrete input number
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
16 for digital input conforming to IEC 61131-2 Type 1
Discrete input voltage
24 V DC, discrete input logic: sink or source (positive/negative)
Number of common point
1 for fast input (HSC mode)
1 for digital input
Discrete input current
2.25 mA for fast input
2.25 mA for digital
Sensor power supply
15…28.8 V DC >= 15 V, current (state 1): >= 2.2 mA <= 5 V, current (state 0): <= 1 mA
Configurable filtering time
0.004...0.04 ms bounce filter
Maximum input frequency
100 kHz for fast input (HSC mode) - control type 1 pulse/direction or A/B encoder input
for digital input
Maximum cable distance between devices
Unshielded cable: <10 m for fast input
Unshielded cable: <50 m for digital input
Isolation between channels
None
Discrete output number
2 fast output (PLS/PWM/PTO mode), output logic: sink
16 digital output, output logic: sink
Discrete output voltage
24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s)
Input/output number
2 for fast input
16 for digital input
2 for fast output
16 for digital output
Discrete output current
for high speed input
for digital input
50 mA 3.2 A) for fast output (PLS/PWM/PTO mode)
0.3 A for digital output
Maximum output frequency
65 kHz for fast output (PWM or PTO mode)
Absolute accuracy error
+/- 10 % of full scale
Cut-out dimensions
156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm
