PFXPSA6AFD18W11

PSA6000_ATOM_15W_Default

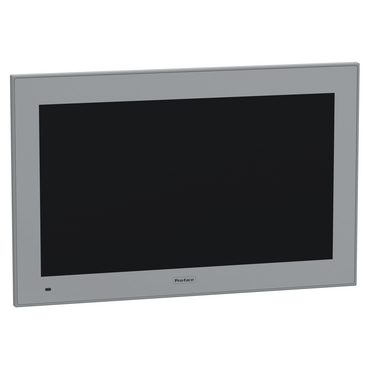

15" wide Panel PC, Pro-face PSA6000, Intel Atom X7425E with 1.5GHz, 24VDC, 55W

Main
Range of product
Pro-face PSA6000
Device short name
All in one Panel PC
Product or component type
Panel PC
Operating system
Windows 11 IoT Enterprise 2024 LTSC 64 bit
Processor name
Intel Atom X7425E at 1500 MHz 4 4
Memory type
8 GB DDR5
Data storage equipment
128 GB M.2 SSD
Storage capacity
128 GB
Complementary
Display size
15 inch
Aspect ratio
16:9
Display type
TFT LCD screen
Display resolution
1920 x 1080 pixels WXGA
Display colour
16 million colours
Touch panel
Projected capacitive technology (PCT)
With touch screen
True
Backlight lifespan
50000 hours 16 million colours at 25 °C
Integrated connection type
COM1 serial link with 1 plug SUB-D 9, RS232 - 2400...115200 bps on bottom non-isolated
COM2 serial link with 1 plug SUB-D 9, RS422/RS485 - 2400...115200 bps on bottom non-isolated
USB 3.1 port with 2 USB type A on bottom
USB 2.0 port with 2 USB type A on bottom
Ethernet with 3 RJ45, 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 Mbps on bottom
display port with 1 DP on bottom DP++
Number of HW interfaces USB
4
Number of HW interfaces serial RS232
1
Number of HW interfaces serial RS422
1
Number of HW interfaces serial RS485
1
Number of HW interfaces industrial Ethernet
3
Number of slots
1 slot(s) for M.2
[Us] rated supply voltage
24 V DC power supply
DC control voltage
24 V
Type of cooling
AN (air natural)
Supply voltage limits
24 V DC
Network type
DC
Power consumption in W
58 W
Power losses
58 W
Inrush current
30 A
Fixing mode
By 4 M4 screws
Device mounting
Panel mounting
VESA mounting
Cut-out dimensions
394 (+ 1/- 0) x 250 (+ 1/- 0) mm
Width
406.4 mm
Height
262.4 mm
Depth
58.8 mm
Net weight
4.9 kg
Environment
Product certifications
UL
RCM
KC
UKCA
CE
Standards
UL 61010
Product certifications
UL
RCM
KC
UKCA
CE
IP degree of protection
IP66 front:
IP20 rear:
IP degree of protection
IP66
IP20
Ambient air temperature for operation
0…50 °C (with an airflow velocity of 0.6 m/s)
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Operating altitude
0...2000 m
Pollution degree
2
Vibration resistance
3.5 mm (f = 5…9 Hz) - single amplitude - conforming to IEC 61131-2
Shock resistance
147 m/s² X, Y, Z directions for 3 times
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
41 cm
Package 1 Width
19.5 cm
Package 1 Length
53 cm
Package 1 Weight
6.69 kg
Unit Type of Package 2
P06
Number of Units in Package 2
6
Package 2 Height
1040 cm
Package 2 Width
600 cm
Package 2 Length
800 cm
Package 2 Weight
57 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 666 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
108.45816186183497
Carbon footprint of the manufacturing phase [A1 to A3]
108 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
3.29568232190356
Carbon footprint of the distribution phase [A4]
3 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.07291113163185398
Carbon footprint of the installation phase [A5]
0.1 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
1545.4883285906712
Carbon footprint of the use phase [B2, B3, B4, B6]
1 545 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
8.427252627631706
Carbon footprint of the end-of-life phase [C1 to C4]
8 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1666
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
45 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
307efd9b-f27c-4147-8d7d-2e755739c323
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
