PFXPSA65GD18W11

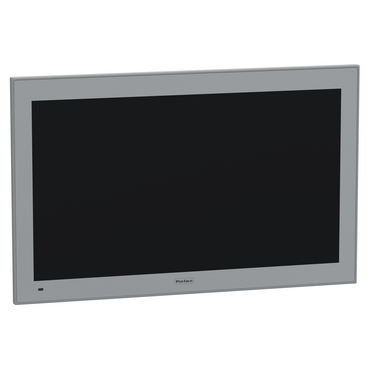

19" wide Panel PC, Pro-face PSA6000, Intel Core i5 1345UE with 1.4GHz, 24VDC, 60W

Main
Complementary
Environment
Packing Units
Dimensions Drawings
Mounting and Clearance
Offer Sustainability

Main

Range of product

Pro-face PSA6000

Device short name

All in one Panel PC

Product or component type

Panel PC

Operating system

Windows 11 IoT Enterprise 2024 LTSC 64 bit

Processor name

Intel Core i5 1345UE at 1400 MHz P-Core: 2 12
Intel Core i5 1345UE at 1400 MHz E-Core: 8 12

Memory type

8 GB DDR5

Data storage equipment

128 GB M.2 SSD

Storage capacity

128 GB

Complementary

Display size

19 inch

Aspect ratio

16:9

Display type

TFT LCD screen

Display resolution

1920 x 1080 pixels full HD

Display colour

16 million colours

Touch panel

Projected capacitive technology (PCT)

With touch screen

True

Backlight lifespan

50000 hours 16 million colours at 25 °C

Integrated connection type

COM1 serial link with 1 plug SUB-D 9, RS232 - 2400...115200 bps on bottom non-isolated
COM2 serial link with 1 plug SUB-D 9, RS422/RS485 - 2400...115200 bps on bottom non-isolated
USB 3.1 port with 2 USB type A on bottom
USB 2.0 port with 2 USB type A on bottom
Ethernet with 3 RJ45, 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 Mbps on bottom
display port with 1 DP on bottom DP++

Number of HW interfaces USB

Number of HW interfaces serial RS232

Number of HW interfaces serial RS422

Number of HW interfaces serial RS485

Number of HW interfaces industrial Ethernet

Number of slots

1 slot(s) for M.2

[Us] rated supply voltage

24 V DC power supply

DC control voltage

24 V

Type of cooling

AN (air natural)

Supply voltage limits

24 V DC

Network type

Power consumption in W

60 W

Power losses

60 W

Inrush current

30 A

Fixing mode

By 4 M4 screws

Device mounting

Panel mounting
VESA mounting

Cut-out dimensions

449.5 (+ 1/- 0) x 279.5 (+ 1/- 0) mm

Width

461.9 mm

Height

291.9 mm

Depth

58.8 mm

Net weight

6.2 kg

Environment

Product certifications

UL
RCM
KC
UKCA
CE

Standards

UL 61010

Product certifications

UL
RCM
KC
UKCA
CE

IP degree of protection

IP66 front:
IP20 rear:

IP degree of protection

IP66
IP20

Ambient air temperature for operation

0…50 °C (with an airflow velocity of 0.6 m/s)

Ambient air temperature for operation

0…50 °C

Ambient air temperature for storage

-20…60 °C

Operating altitude

0...2000 m

Pollution degree

Vibration resistance

3.5 mm (f = 5…9 Hz) - single amplitude - conforming to IEC 61131-2

Shock resistance

147 m/s² X, Y, Z directions for 3 times

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

44.000 cm

Package 1 Width

19.500 cm

Package 1 Length

58.500 cm

Package 1 Weight

8.150 kg

Unit Type of Package 2

P06

Number of Units in Package 2

Package 2 Height

105.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

53.000 kg

Offer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained

Recyclability potential, in %

Total lifecycle Carbon footprint

1 995 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3]

137 kg CO2 eq.

Carbon footprint of the distribution phase [A4]

4 kg CO2 eq.

Carbon footprint of the installation phase [A5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6]

1 843 kg CO2 eq.
