PFXGP6B40DI

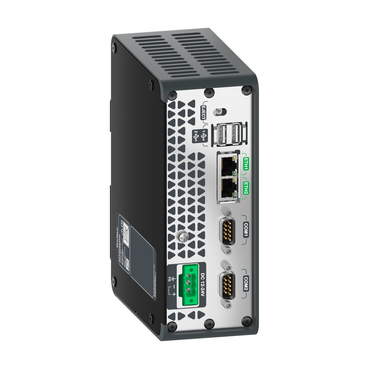

PFX_IoP_BOX_DC_Default

DIN Box, Pro-face GP6000 Advanced, modular, 2xCOM, 2xETH, 2xUSB A, 1xUSB C, 1xUSB micro B, 1xSDXC, DC

Main
Product or component type
Modular HMI box
Range of product
Pro-face GP6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A53
Complementary
[Us] rated supply voltage
12...24 V DC
Inrush current
30 A
Input voltage limits
10.8…28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for operating
Memory description
Built in flash memory 4 GB
Memory description
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
USB 2.0 port USB type A
USB 2.0 port micro B USB
USB 2.0 port USB type C
Ethernet 2 RJ45, interface: 10 BASE-T/100 BASE-TX/1000 BASE-T
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
SD/SDHC/SDXC
Maximum power consumption in W
70 W maximum
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 screws, mounting on DIN rail with accessory
Width
173 mm
Height
131.7 mm
Depth
63 mm
Net weight
1.4 kg
Environment
Product certifications
UL
NEMA degree of protection
(indoor use only)
Standards
EN 61010-2-201
Directives
2014/35/EU - low voltage directive
IP degree of protection
IP20 (enclosure)
IP67f (front)
IP67f (enclosure)
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
16 cm
Package 1 Width
23 cm
Package 1 Length
26.4 cm
Package 1 Weight
2.2 kg
Unit Type of Package 2
S04
Number of Units in Package 2
2
Package 2 Height
30 cm
Package 2 Width
40 cm
Package 2 Length
60 cm
Package 2 Weight
5.16 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
609 kg CO2 eq.
Huella de carbono de la fase de fabricación [A1 a A3]
146 kg CO2 eq.
Huella de carbono de la fase de distribución [A4]
3 kg CO2 eq.
Huella de carbono de la fase de instalación [A5]
0 kg CO2 eq.
Huella de carbono de la fase de uso [B2, B3, B4, B6]
458 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Huella de carbono de la fase de fin de vida [C1 a C4]
3 kg CO2 eq.
Environmental Disclosure
Total lifecycle Carbon footprint
609
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
73 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
REACh Regulation
SCIP Number
A47c7e83-fb99-4000-b40c-664124d806da
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
