PFXGP6940WCDI

PFX_IoP_22W_HD_DC_Default

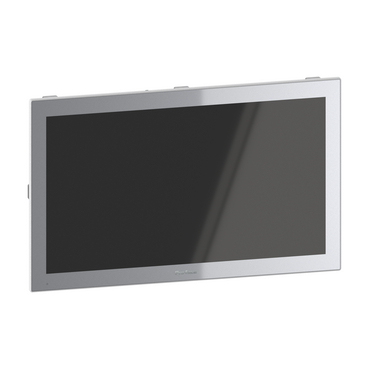

Touch panel screen, Pro-face GP6000 Advanced, 22 inch wide, full HD, modular, multi-touch, DC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A53
Complementary
Display size
21.5 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1920 x 1080 pixels full HD
Touch panel
Multi-touch projected capactive technology (PCT)
Backlight lifespan
50000 hours with white
Brightness
101 levels via touch panel
Character font
Japanese
[Us] rated supply voltage
12...24 V DC
Inrush current
30 A
Input voltage limits
10.8…28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for operating
Memory description
Built in flash memory 4 GB
Memory description
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
USB 2.0 port USB type A
USB 2.0 port micro B USB
USB 2.0 port USB type C
Ethernet 2 RJ45, interface: 10 BASE-T/100 BASE-TX/1000 BASE-T
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
SD/SDHC/SDXC
Maximum power consumption in W
61 W maximum
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions
518.5 (+1/-0) x 316.5 (+1/-0) mm panel cut dimension
Width
532.6 mm
Height
330.6 mm
Depth
66 mm
Net weight
7.5 kg
Environment
Product certifications
UL
Standards
EN 61010-2-201
Directives
2014/35/EU - low voltage directive
IP degree of protection
IP67f (front panel (in enclosure)) conforming to UL 50
conforming to UL 50 E
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
50 cm
Package 1 Width
15 cm
Package 1 Length
70 cm
Package 1 Weight
9.5 kg
Unit Type of Package 2
S06
Number of Units in Package 2
3
Package 2 Height
73.5 cm
Package 2 Width
60 cm
Package 2 Length
80 cm
Package 2 Weight
41.5 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 391 kg CO2 eq.
Huella de carbono de la fase de fabricación [A1 a A3]
287 kg CO2 eq.
Huella de carbono de la fase de distribución [A4]
13 kg CO2 eq.
Huella de carbono de la fase de instalación [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
1076.117799166837
Huella de carbono de la fase de uso [B2, B3, B4, B6]
1 076 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Carbon footprint of the end-of-life phase [C1 to C4]
14.86016407169953
Huella de carbono de la fase de fin de vida [C1 a C4]
15 kg CO2 eq.
Environmental Disclosure
Total lifecycle Carbon footprint
1391
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
90 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
REACh Regulation
SCIP Number
B156dc75-1dcf-4080-9769-a433fc086f1b
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
