PFXGP6600TAA

GP6000_12_XGA_AC_Default

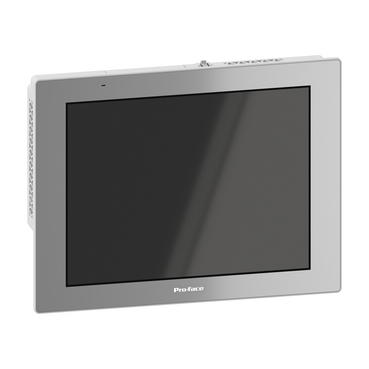

touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, AC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A53
Complementary
Display size
12.1 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1024 x 768 pixels XGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
101 levels via touch panel
101 levels by software
Character font
Japanese
ASCII
Chinese (simplified Chinese)
Chinese (traditional Chinese)
Korean
Cyrillic
Thai
Input voltage limits
85...264 V AC
Rated short-duration power frequency withstand voltage
1.5 kV AC during 1 min
Local signalling
Status LED green, steady for operating
Status LED green, steady for operating status (RUN)
Status LED orange, flashing for software starting up
Status LED red, steady for power ON
Status LED red, flashing for ERR (Error)
Status LED green, flashing for backlight and display off
Memory description
Built in flash memory 4 GB
Backup memory NVRAM 512 KB
Memory description
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps
USB 2.0 type A
USB 2.0 type micro B
Ethernet 2 RJ45, interface: 10BASE-T/100BASE-TX
SD/SDHC/SDXC
[Us] rated supply voltage
100...240 V AC
Inrush current
30 A
Maximum power consumption in W
maximum
backlight off (standby mode)
Power consumption in VA
23.7 VA at 100 V AC (maximum)
34.8 VA at 240 V AC (maximum)
Electrical connection
Cable 3.5 mm², AWG 18...AWG 12, max resistance 100 Ohm for protective earth
Fixing mode
By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions
301.5 x 227.5 mm panel cut dimension
Width
315 mm
Height
241 mm
Depth
60 mm
Net weight
2.4 kg
Environment
Product certifications
UL
cUL
CE
UKCA
RCM
KC
EU-RO MR
KCS
CCC Ex
UKEX
ATEX zone 2/22
IECEx zone 2/22
Standards
EN 61010-2-201
IEC 61000-6-2
UL 121201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
IP degree of protection
IP65f (front panel (in enclosure)) conforming to UL 50
conforming to UL 50 E
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
13 cm
Package 1 Width
31.6 cm
Package 1 Length
39.3 cm
Package 1 Weight
3.1 kg
Unit Type of Package 2
S06
Number of Units in Package 2
4
Package 2 Height
34.5 cm
Package 2 Width
60 cm
Package 2 Length
80 cm
Package 2 Weight
25.4 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 274 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
160 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.6 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.1 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
1 109 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
5 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1274
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
96 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
02f44442-1b59-469d-9b64-261c88a82355
REACh Regulation
Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Dimensions Drawings
Mounting and Clearance
