PFXGP6540WCDI

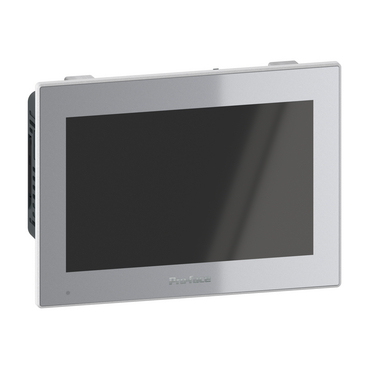

PFX_IoP_10W_WXGA_DC_Default

Touch panel screen, Pro-face GP6000 Advanced, 10 inch wide, WXGA, modular, multi-touch

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A53
Complementary
Display size
10 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1280 x 800 pixels WXGA
Touch panel
Multi-touch projected capactive technology (PCT)
Backlight lifespan
50000 hours with white
Brightness
101 levels via touch panel
Character font
Japanese
[Us] rated supply voltage
12...24 V DC
Inrush current
30 A
Input voltage limits
10.8…28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for operating
Memory description
Built in flash memory 4 GB
Memory description
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
USB 2.0 port USB type A
USB 2.0 port micro B USB
USB 2.0 port USB type C
Ethernet 2 RJ45, interface: 10 BASE-T/100 BASE-TX/1000 BASE-T
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
SD/SDHC/SDXC
Maximum power consumption in W
42 W maximum
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions
255 x 185 mm panel cut dimension
Width
268.5 mm
Height
198.5 mm
Depth
64 mm
Net weight
3.2 kg
Environment
Product certifications
UL
Standards
EN 61010-2-201
Directives
2014/35/EU - low voltage directive
IP degree of protection
IP67f (front panel (in enclosure)) conforming to UL 50
conforming to UL 50 E
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
36.500 cm
Package 1 Width
14.500 cm
Package 1 Length
36.000 cm
Package 1 Weight
3.365 kg
Unit Type of Package 2
S06
Number of Units in Package 2
6
Package 2 Height
75.000 cm
Package 2 Width
60.000 cm
Package 2 Length
80.000 cm
Package 2 Weight
29.500 kg
