PFXGP6500TMA

GP6000_10_SVGA_AC_Default

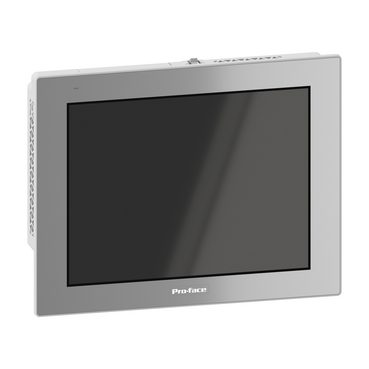

touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Matrix, 2xCOM, 2xETH, USB A & micro B, SD, AC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Complementary
Display size
10.4 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
800 x 600 pixels SVGA
Touch panel
Matrix
Backlight lifespan
50000 hours with white
Brightness
101 levels via touch panel
101 levels by software
Character font
Japanese
ASCII
Chinese (simplified Chinese)
Chinese (traditional Chinese)
Korean
Cyrillic
Thai
[Us] rated supply voltage
100...240 V AC
Inrush current
30 A
Input voltage limits
100...240 V AC
Rated short-duration power frequency withstand voltage
1.5 kV AC during 1 min
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating status (RUN)
Status LED orange, flashing for software starting up
Status LED red, steady for power ON
Status LED red, flashing for ERR (Error)
Status LED green, flashing for backlight and display off
Power consumption in VA
18.3 VA at 100 V AC (maximum)
29.1 VA at 240 V AC (maximum)
Memory description
Built in flash memory 4 GB
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps
USB 2.0 type A
USB 2.0 type micro B
Ethernet 2 RJ45, interface: 10BASE-T/100BASE-TX
SD/SDHC/SDXC
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions
259 x 201 mm panel cut dimension
Width
272.5 mm
Height
214.5 mm
Depth
58.5 mm
Net weight
1.9 kg
Environment
Product certifications
UL
cUL
CE
UKCA
RCM
KC
EU-RO MR
KCS
CCC Ex
UKEX
ATEX zone 2/22
IECEx zone 2/22
Standards
EN 61010-2-201
IEC 61000-6-2
UL 121201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
IP degree of protection
IP65f (front panel (in enclosure))
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14 cm
Package 1 Width
28.2 cm
Package 1 Length
36.2 cm
Package 1 Weight
2.5 kg
Unit Type of Package 2
S04
Number of Units in Package 2
4
Package 2 Height
30 cm
Package 2 Width
40 cm
Package 2 Length
60 cm
Package 2 Weight
11.2 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
SCIP Number
82376fe4-8310-4a92-9f38-b4435478fcd5
Packaging without single use plastic
Yes
Packaging made with recycled cardboard
Yes
REACh Regulation
REACh Declaration
EU RoHS Directive
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Yes
Environmental Disclosure
Product Environmental Profile
Circularity Profile
End of Life Information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
F-gas usage performance
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Take-back
No
Removable battery
Yes
Global warming ; Total life cycle​
1 016 kg CO2 eq.
Carbon footprint (kg.eq.CO2 per CR, Total Life cycle)
1016
Dimensions Drawings
