PFXGP6500TADFZ26

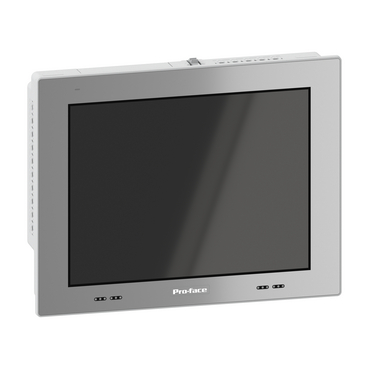

GP6000_IoP_10_SVGA_Default

touch panel screen, Proface GP6000, 10.4 inch, SVGA, all in one, analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC, N2

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A53
Complementary
Display size
10.4 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
800 x 600 pixels SVGA
Touch panel
Single touch analogue resistive
Brightness
101 levels via touch panel
Character font
Japanese
Type of cooling
AN (air natural)
Inrush current
30 A
Width
272.5 mm
Height
214.5 mm
Depth
58.5 mm
Net weight
1.9 kg
Environment
Product certifications
UL
Standards
EN/IEC 61010-2-201
Directives
2014/35/EU - low voltage directive
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Insulation resistance
>= 10 mOhm
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14 cm
Package 1 Width
28.2 cm
Package 1 Length
36.2 cm
Package 1 Weight
2.5 kg
Unit Type of Package 2
S04
Number of Units in Package 2
4
Package 2 Height
30 cm
Package 2 Width
40 cm
Package 2 Length
60 cm
Package 2 Weight
11.2 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
468 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
129 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.5 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.1 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
335 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
4 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
468
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
E177aabc-9273-4b8b-8c78-d8bd60909b39
REACh Regulation
Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
