PFXGP6300TAD

GP6000_5_VGA_DC_Default

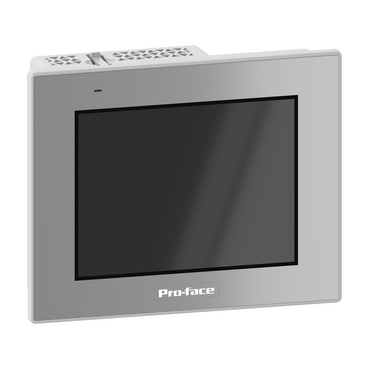

touch panel screen, Proface GP6000, 5.7 inch, VGA, All in one, Analog single, 2xCOM, 2xETH, USB A, USB micro B, SD, DC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP6000
Software designation
GP-Pro EX
Complementary
Display size
5.7 inch
Display type
Colour TFT LCD
Display colour
262144 colours
Display resolution
640 x 480 pixels VGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
101 levels via touch panel
101 levels by software
Character font
Japanese
ASCII
Chinese (simplified Chinese)
Chinese (traditional Chinese)
Korean
Cyrillic
Thai
[Us] rated supply voltage
24 V DC
Inrush current
30 A
Input voltage limits
19.2...28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating status (RUN)
Status LED orange, flashing for software starting up
Status LED red, steady for power ON
Status LED red, flashing for ERR (Error)
Status LED green, flashing for backlight and display off
Memory description
Built in flash memory 4 GB
Backup memory NVRAM 512 KB
Maximum power consumption in W
9.3 W
5.5 W when power is not supplied to external devices
4.1 W backlight off (standby mode)
Processor frequency
1200 MHz
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
USB 2.0 type A
USB 2.0 type micro B
Ethernet 2 RJ45, interface: 10BASE-T/100BASE-TX
SD/SDHC/SDXC
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions
156 x 123.5 mm panel cut dimension
Width
169.5 mm
Height
137 mm
Depth
59.5 mm
Product weight
0.8 kg
Environment
Product certifications
UL
cUL
CE
UKCA
RCM
KC
EU-RO MR
KCS
CCC Ex
UKEX
ATEX zone 2/22
IECEx zone 2/22
Standards
EN 61010-2-201
IEC 61000-6-2
UL 121201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
IP degree of protection
IP65f (front panel (in enclosure))
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
11.6 cm
Package 1 Width
22 cm
Package 1 Length
26.3 cm
Package 1 Weight
1.2 kg
Unit Type of Package 2
S04
Number of Units in Package 2
7
Package 2 Height
30 cm
Package 2 Width
40 cm
Package 2 Length
60 cm
Package 2 Weight
9.6 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
468 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
103.6784751128052
Carbon footprint of the manufacturing phase [A1 to A3]
104 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.2399390850485333
Carbon footprint of the distribution phase [A4]
0.2 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.04365205424830557
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
362.07626714799227
Carbon footprint of the use phase [B2, B3, B4, B6]
362 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
1.721639521500497
Carbon footprint of the end-of-life phase [C1 to C4]
2 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
468
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
89 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
49fe9a13-d17e-46c8-96cf-374dbb973f44
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
