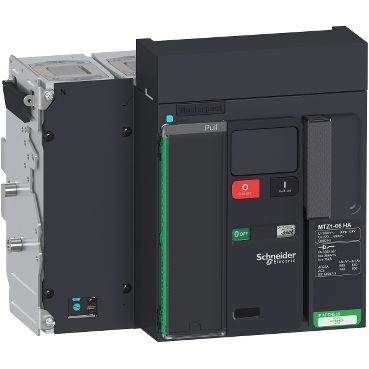

Switch disconnector, MasterPact MTZ1 06HA, 630A, 75kA/690VAC 50/60Hz (Icm), 4P, drawout

Main
Range
MasterPact
Device short name
MTZ1 06 HA
Product name
MasterPact MTZ1
Product or component type
Switch disconnector
Device application
Distribution
Range compatibility
Masterpact MasterPact MTZ1 06
Switch-disconnector name
MasterPact MTZ1 06 HA
Poles description
4P
Network type
AC
Network frequency
50/60 Hz
Complementary
Control type
Push-button
Mounting mode
Drawout
Mounting support
Chassis
Upside connection
Front
Downside connection
Front
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to EN/IEC 60947-3
[Ie] rated operational current
630 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage
1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
[Uimp] rated impulse withstand voltage
12 kV conforming to EN/IEC 60947-3
[Icw] rated short-time withstand current
20 kA during 3 s conforming to EN/IEC 60947-3
36 kA during 0.5 s conforming to EN/IEC 60947-3
36 kA during 1 s
[Icm] rated short-circuit making capacity
75 kA peak 220...690 V AC at 50/60 Hz
Utilisation category
AC-23A
AC-3
Breaking capacity code
HA
Suitability for isolation
Yes conforming to EN/IEC 60947-3
Contact position indicator
Yes
Visible break
No
Mechanical durability
12500 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability
AC-23A: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
AC-23A: 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Connection pitch
70 mm
Width
358 mm
Height
322 mm
Depth
291 mm
Compatibility code
MTZ1 06
Environment
Net weight
39 kg
Product certifications
IECEE CB Scheme
Standards
EN/IEC 60947-3
IP degree of protection
IP30
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Pollution degree
3 conforming to EN/IEC 60947-4-1
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
41.0 cm
Package 1 Width
39.0 cm
Package 1 Length
30.0 cm
Package 1 Weight
21.375 kg
Contractual warranty
Warranty
18 months

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
732 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
277.98581196581193
Carbon footprint of the manufacturing phase [A1 to A3]
278 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
6.694735042735043
Carbon footprint of the distribution phase [A4]
7 kg CO2 eq.
Carbon footprint of the installation phase [A5]
27.66545299145299
Carbon footprint of the installation phase [A5]
28 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
341.4321003344482
Carbon footprint of the use phase [B2, B3, B4, B6]
341 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Carbon footprint of the end-of-life phase [C1 to C4]
78.46294017094017
Carbon footprint of the end-of-life phase [C1 to C4]
78 kg CO2 eq.
Environmental Disclosure
Total lifecycle Carbon footprint
732
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
EU RoHS Directive
REACh Regulation
SCIP Number
44ce05ea-25e9-435c-886d-b1162ae4666b
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
