PFXPP161xxxxxxxx00

Standard product information
Family
Industrial PC (IPC)
Series
PS4000 Series
Size
12"
Model
PFXPP161xxxxxxxx00
Global Code
PFXPP161xxxxxxxx00
Product Features
12" 1 slot (1 PCI)
Sales Status
End of Sales
Repair Status
✔ (Maintenance service is available, able to be maintained.)
End of Commercialization
2019/07/31
End of Support/Repair
2023/12/25
Product search item
Search Appearance
All in one
Ethernet
Equipped
Serial port
2
Front USB
equipped
Replacement option 2
Replace 2 Model
40466, 40482
Replace 2 Comment
PS-5601T Atom Model is the substitute of PS-4600 Celeron Model.
Industrial PC specifications
Supported OS
HDD or SSD: Windows XP Professional SP3 (32 bit) / Windows 7 Ultimate (32 bit/64 bit)
CFast: Windows Embedded Standard 2009 (32 bit) / Windows Embedded Standard 7 Premium (32 bit)
*1
CPU
Intel Core i3-3217UE 1.60 GHz / Intel Celeron M 827E 1.40 GHz
L2 cache memory
Core i3: 3MB / Celeron: 1.5 MB
Main Memory
DDR3: 1 GB to 16 GB max.
Chipset
Core i3: Intel QM77 / Celeron: Intel HM76
Graphic Accelerator
Core i3: Intel HD Graphics 4000 / Celeron M: Intel HD Graphics 3000
Video Memory
Up to 1 GB*2
Graphics
XGA TFT active matrix (1,024 x 768 pixels)

1For details on languages supported by pre-installed operating systems, read the manual, "The List of OS Pre-installed Languages for Multi-language".
For Windows Embedded Standard 2009, 4 GB CFast or more is required. For Windows Embedded Standard 7 Premium, 8 GB CFast or more is required.
End of sale for Windows XP model: Nov. 25, 2016.

2Reserved from main memory

Display specifications
Display Size
12.1"
Display Colors
16 million colors
Backlight
LED
Backlight service life
50,000 hrs. at 25 °C [77 °F]
Brightness Control
Step less adjustment
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
4,096 x 4,096
Electrical specifications
Rated Input Voltage
AC: 100 to 240 Vac
DC: 24 Vdc ±25 %
Rated Frequency
AC Power Model : 50 / 60 Hz
Power Consumption
130 W or less
In-Rush Current
AC Power Model: < 20 A (Cold restart, 100% load, 100 Vac)
DC Power Model: Typ. 7 A, max. 60 A < 300 μs
Environmental specifications
International Safety Standards
CE, C-Tick, EAC, KC, ANSI/CSA (UL508+1604) Listed
Surrounding Air Temperature
When using HDD running with a fan kit, SSD or CFast: 0 to 50 °C [32 to 122 °F]
When using Gigabit Ethernet: 0 to 45 °C [32 to 113 °F]
When using DVD multi drive: 5 to 45 °C [41 to 113 °F]
Storage Temperature
-20 to +60 °C [-4 to 140 °F]
Ambient Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Storage Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
EN/IEC 60068-2-6 Fc
[Operation (continuous) for 6 Fc products with SSD or CF Card storage device] 2 to 9 Hz: 1.5 mm [0.06 in.], 9 to 200Hz: 4.9 m/s2, 5 to 8.4 Hz: 1.75 mm [0.07], 8.4 to 150 Hz: 4.9 m/s2
[Operation (continuous) for products with HDD storage device] 5 to 100 Hz: 1.225 m/s2
[Operation (occasional) for products with SSD or CF Card storage device] 2 to 9 Hz: 3 mm [0.12 in.], 9 to 200 Hz: 9.8 m/s2, 5 to 8.4 Hz: 3 mm [0.12], 8.4 to 150 Hz: 9.8 m/s2
[Operation (occasional) for products with HDD storage device] 5 to 100 Hz: 2.450 m/s2
Concussion resistance
147 m/s2 / 11 ms (IEC 60068-2-27 Ea test)
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (D-Sub 9-pin, plug)
Serial (COM2)
RS-232C (D-Sub 9-pin, plug)
USB Type A
Conforms to USB 2.0 (Type A) x 4 (bottom side)
USB 2.0 (Type A) x 1 (front side - not equipped with Rear Mount Model)
*1
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
DVI-I x 1
Serial ATA
Slide-in Disk: (HDD, SSD / CFast with Slide-in Disk Adapter unit) x 1
Slide-in Slot: (DVD-RW / HDD, SSD, CFast (with Slide-in Disk Adapter unit) through Slide-in Slot Adapter unit) x 1
CFast: x 1
*2
Expansion slot
PCI x 1

1USB 3.0 is equipped with Core i3 model of Windows 7 or Windows Embedded Standard 7
Maximum 500 mA per connection for USB5
Maximum 1 A per connection for USB1, USB2, USB3 and USB4
USB5 is not equipped with Rear Mount Model.

2Modifying products to install an HDD into a Slide-in Disk when it was not installed from factory, requires to change the unit firmware settings for proper behavior of the fan (that are required when running with HDD into a Slide-in Disk) - Please contact Pro-face support if you want to proceed such modification.

Structural specifications
Cooling method
Passive heat sink for the operation without HDD storage device into Slide-in Disk.
Optional fan kit necessary for the operation with HDD storage device into Slide-in Disk.
Protective structure
IP65, Type 4X (indoor use only)*1
External dimensions
W313 x H239 x D123.2 mm [W12.32 x H9.41 x D4.85 in.]
Panel cut dimensions
W301.5 (+1.0/0) x H227.5 (+1.0/0) mm [W11.87 (+0.04/0) x H8.96 (+0.04/0) in.]
Weight
4.1 kg [9.03 lb]

1When the front USB cover is closed on the models except for Rear Mount Model

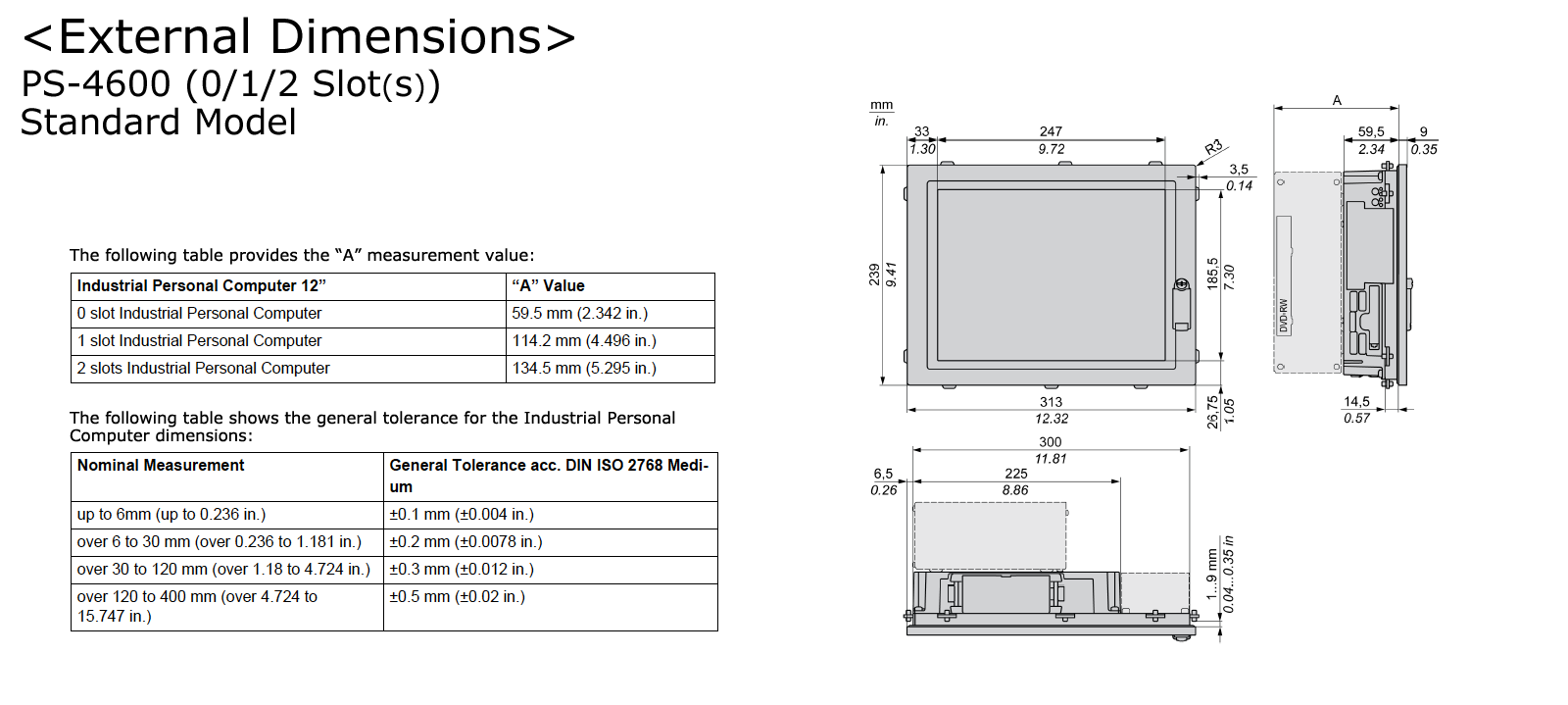

Dimensions
External installation diagram
Panel cut dimensions

1: Installation panel
A B C
301.5 (+1/0) mm [11.87 (+0.04/0) in.] 227.5 (+1/0) mm [8.96 (+0.04/0) in.] 1.6 to 9 mm [0.06 to 0.35 in.]
