PFXPEBBD21BNN1

Standard product information
Family
Industrial PC (IPC)
Series
PE4000B Series
Size
Built-in
Model
PFXPEBBD21BNN1
Global Code
PFXPEBBD21BNN1
Product Features
Box Type Atom N2600 Cfast 8 GB
Sales Status
End of Sales
End of sales date
Wednesday, July 31, 2019*1
End of repair date
Monday, December 25, 2023*2
Repair Status
✔ (Maintenance service is available, able to be maintained.)

1Due to the limited availability of the products in stock, shipping will end when the stock is out.

2It might not be able to repair our products when replacement parts become unavailable, regardless of the maintenance period.

Recommended replacement information
Replacement option 1
Model
PFXPL2BxxxxxNxxx00 (PS-5001B, Atom model)
PFXPL2Bxxxxx4xxx00 (PS-5001B, Atom (Entry) model)
Note
Panel cut-out size different. Display resolution different.
Industrial PC specifications
Supported OS
Windows Embedded Standard 2009 (32 bit)
CPU
Intel Atom Dual Core N2600 1.6 GHz
L2 cache memory
1 MB
Main Memory
2 GB (DDR3 800 MHz)
Chipset
NM10
Graphic Accelerator
DirectX 10.1 and OpenGL 3.0 support
Hardware accelerated video decode
Video decoder: Support MPEG4, VC1, WMV9, H.264
Video Memory
Up to 512 MB
Graphics
RGB: Up to 1,920 x 1,200 at 85 Hz
HDMI: Supports 1,920 x 1,200, max data rate: up to 1.65 Gb/s Supports
HDMI 1.3: up to 1,080 p support
Watchdog timer
255 levels timer interval, programmable, 1 to 255 s
Display specifications
Display Size
Built-in
Electrical specifications
Rated Input Voltage
12 to 24 Vdc ±5 %
Power Consumption
Typ. 16 W
In-Rush Current
30 A or less
Environmental specifications
International Safety Standards
Surrounding Air Temperature
0 to 60 °C [32 to 140 °F] with air flow, speed = 0.7 m/sec.
0 to 50 °C [32 to 122 °F] without airflow
Storage Temperature
-40 to +85 °C [-40 to 185 °F]
Ambient Humidity
95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
[IEC 60068-2-6] 2 to 9 Hz: 1.75 mm [0.07 in.], 9 to 200 Hz: 4.9 m/s2
Concussion resistance
[IEC 60068-2-27 Ea] CFast / SSD / CF: 50 G at wall mount, half sine, 11 ms
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (D-Sub 9-pin, plug)
Serial (COM2)
RS-232C (D-Sub 9-pin, plug)
Serial (COM3)
RS-232C / 422 / 485 (D-Sub 9-pin, plug)
port with auto flow control (by BIOS setting)
Serial (COM4)
RS-232C / 422 / 485 (D-Sub 9-pin, plug)
port with auto flow control (by BIOS setting)
Serial (COM5)
RS-232C / 422 / 485 (D-Sub 9-pin, plug)
port with auto flow control (by BIOS setting)
Serial (COM6)
RS-232C / 422 / 485 (D-Sub 9-pin, plug)
port with auto flow control (by BIOS setting)
USB Type A
Conforms to USB 2.0 (Type A) x 5
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN3)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
CFast card
CFast: 1, with 8GB installed
Video
Analog RGB x 1, HDMI x 1
Sound input
Line-in, Mic-in
Sound Output
Line Out x 1
Serial ATA
SSD x 1
Expansion slot
Mini PCIe (full size) x 1
Others
Digital I/O: 8 bits (selectable I/O)

The details of the DIO specification
Isolation: None
Interface Method: CMOS I/F 5 V tolerant
External power supply: +5 VDC ±5 % 300 mA (VDD)
Max. Current at I/O pin total: 85 mA
Structural specifications
Cooling method
Passive heat sink, fan less operation
Protective structure
IP40
External dimensions
W264.5 x H69.19 x D133 mm [W10.41 x H2.72 x D5.24 in.]
Weight
2.5 kg [5.51 lb]
Dimensions

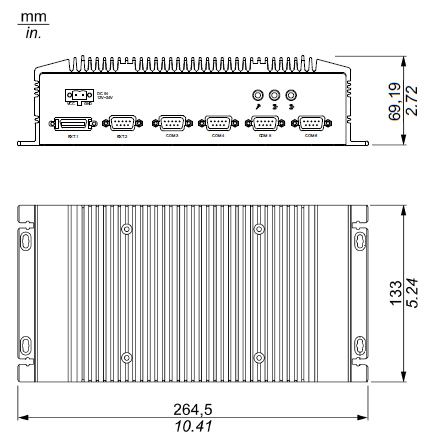

External installation diagram
