PFXSTM6400WAD

STM6_CP20086

15"W touch panel display, 2Ethernet, USB host, 24VDC

Main
Product or component type
Touch panel screen
Range of product
Pro-face STM6000
Processor name
ARM Cortex-A8
Software package
BLUE
Complementary
Display size
7 inch
Aspect ratio
16:9
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
800 x 480 pixels WVGA
Touch panel
Single touch analogue resistive
Backlight lifespan
20000 hours white
Brightness
16 levels
Character font
ASCII
ASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Katakana
Korean
Taiwanese (traditional Chinese)
Memory description
1 GB device memory
128 MB user data memory
512 KB backup memory
Integrated connection type
1 COM1 serial link - female RJ45 - RS232C/RS485 (rate: 2400...115200 bps)bottom
1 USB 2.0 type Aback
1 USB 2.0 type micro Bback
2 Ethernet - female RJ45bottom
Inrush current
30 A
Power consumption in W
10.4 W
Realtime clock
Built-in 0...50 °C
Built-in 10...90 % RH
Fixing mode
Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201
Ø 22 mm hole conforming to IEC 61131-2
Ø 22 mm hole conforming to IEC 61000-6-2
Enclosure material
PC
Front material
Plastic
Marking
CE
Cut-out dimensions
Ø 22.5 mm
Width
201.2 mm
Height
137.2 mm
Depth
57.7 mm
Net weight
0.76 kg
Environment
Immunity to microbreaks
2 ms
Product certifications
CE
UKCA
cULus
RCM
KC
EAC
cULus Class 1 Division 2
DNV
ABS
RINA
BV
NEMA degree of protection
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)
Standards
IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
CSA C22.2 No 213
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
IP degree of protection
IP20 (rear panel) conforming to IEC 61131-2
IP65 (front panel) conforming to IEC 61131-2
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Operating altitude
2000 m
Vibration resistance
+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
9.8 m/s² (f = 9…150 Hz)
Shock resistance
147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.000 cm
Package 1 Width
18.000 cm
Package 1 Length
27.000 cm
Package 1 Weight
1.008 kg
Unit Type of Package 2
S03
Number of Units in Package 2
6
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
6.910 kg
Contractual warranty
Warranty (in months)
18

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
254 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
97.5727600722
Carbon footprint of the manufacturing phase [A1 to A3]
98 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.0632216877
Carbon footprint of the distribution phase [A4]
0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.0063413209
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
156.0039807692
Carbon footprint of the use phase [B2, B3, B4, B6]
156 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Carbon footprint of the end-of-life phase [C1 to C4]
0.1350863901
Carbon footprint of the end-of-life phase [C1 to C4]
0.1 kg CO2 eq.
Environmental Disclosure
Total lifecycle Carbon footprint
254
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
REACh Regulation
SCIP Number
715da6e9-302b-4bd3-a8b4-7f8cdd474a0e
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

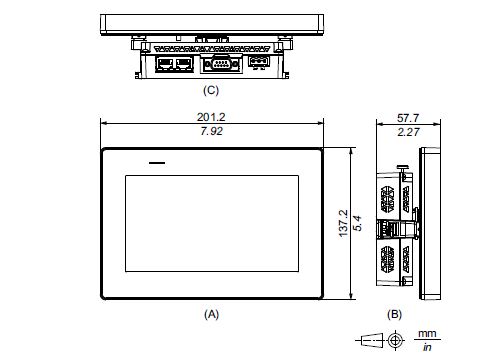

Dimensions Drawings

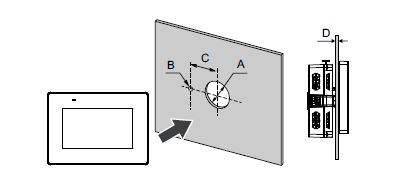

Mounting and Clearance
