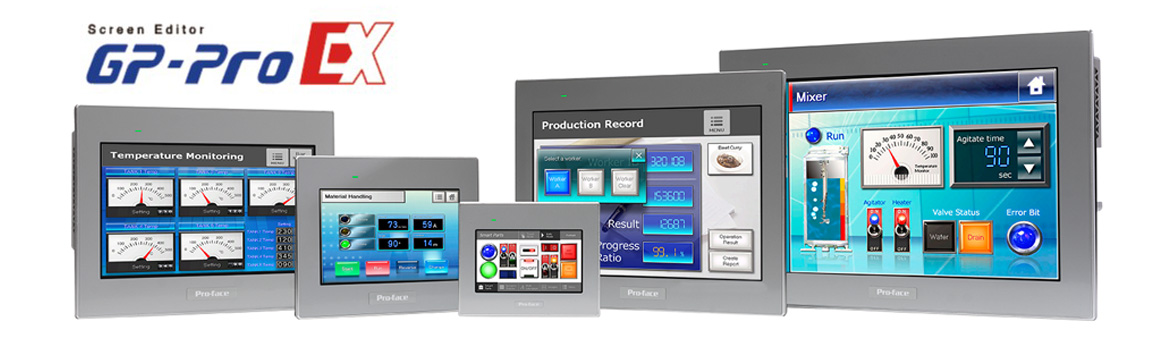

Modernize your machine with the latest HMI with high-resolution on wide display; the basic HMI ST6000 Series with GP-Pro EX.
The new software is also available; BLUE offers an alternative experience in HMI project design.
We have designed a superior display that improves operability and optimizes operations and machine information—an innovative HMI with a sophisticated design that transforms simple machines.
Simple & Easy
Easy Migration with GP-ProEX. Use the same application(GP-ProEX) and leverage existing assets. (Download Replacement book.)
Connected & Secured
User-friendly protocols allow you to easily connect your devices via multiple interfaces and OT to IT.
|Display||4.3” Wide (480 x 272)||7.0” Wide (800 x 480)||10.1” Wide (1,024 x 600)||12.1” Wide (1,280 x 800)||15.6” Wide (1,366 x 768)|
|16M colors White LED 16 level brightness control|
|Touch Panel||Type : resistive film (analog). Service life : 1,000,000 times or more|
|Interface||COM : RS-232C / 422 / 485*|
Ethernet : IEEE802.3i /
IEEE802.3u, 10BASE-T /
100Base-TX x 1 USB : TYPE A X 1,
micro-B x 1
|COM1 : RS-232C,COM2 : RS-422 / 485|
Ethernet : IEEE802.3i / IEEE802.3u, 10Base-T / 100BASE-TX x 2 USB : Type A x 1, Micro-B x 1
|Input Voltage||19.2 to 28.8 Vdc|
|Certifications||IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure), CE, UL and cUL, RCM, KC, EAC, RoHS, WEEE|
|Memory||Application memory : Media : FLASH EPROM / Screen area: 64MB / User font area 8 MB / Logic program area: 132KB|
Backup memory : Screen Area: SRAM 320KB, Variable Area: SRAM 64KB
Battery: Replaceable battery / Primary battery for clock data backup
ST-6500T/6300T is also available to efficiently migrate from the existing HMIs with 4:3 size displays.
- ST6000 Series Hardware Manual (Web)
- ST6000 Series Hardware Manual (PDF)
- ST6000 Series Installation Guide
- GP-Pro EX Reference Manual
- Device/PLC Connection Manual
- GP-Pro EX Trial Version *ST6000 Series has some limitations. For details, please check "Read me."
=Leaflet / Datasheet=
- ST6000 Series CAD data
- Safety standards/Guarantee of the compatibility for RoHS directives
- Export Document PDF
