PFXGP4115T3D

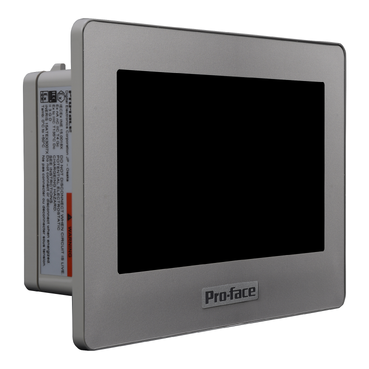

Touch panel screen, Pro-face GP4100, 4.3inch wide, RS-232C, backup memory equipped

Main
Complementary
Environment
Packing Units
Contractual warranty
Dimensions Drawings
Mounting and Clearance
Offer Sustainability

Main

Product or component type

Touch panel screen

Range of product

Pro-face GP4100

Software package

GP-Pro EX
BLUE

Processor name

ARM926EJ-S

Software designation

GP-Pro EX

Complementary

Display size

4.3 inch

Display type

Colour TFT LCD

Display colour

65536 colours

Display resolution

480 x 272 pixels

Touch panel

Analogue

Backlight lifespan

50000 hours with white

Brightness

16 levels via touch panel

Character font

ASCII (European characters)
Chinese (simplified Chinese)
Korean
Japanese (ANK, Kanji)
Cyrillic
Taiwanese (traditional Chinese)

Memory description

Back up of data 320 kB
Application memory 26 MB

Integrated connection type

1 USB 2.0 type mini B
1 USB 2.0 type A
1 serial link - 9-pin terminal block - RS232C (rate: 2400...115200 bps)

[Us] rated supply voltage

12...24 V DC - 10...20 %

Power consumption in W

7.5 W

Supply

External source

Realtime clock

With RTC-battery set optional

Downloadable protocols

Third party protocols
Modbus

Range compatibility

MitsubishI
Siemens
Omron
Allen-Bradley

Fixing mode

By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel

Enclosure material

PPT

Front material

Plastic

Cut-out dimensions

77.5 x 112.5 mm
66 x 105 mm with mounting adaptor

Net weight

0.22 kg

Environment

Product certifications

KCC
CE
UL
C-Tick
ATEX zone 2/22
cUL
UKCA

NEMA degree of protection

NEMA 4X/13 front panel (indoor use)

Standards

ANSI/ISA 12.12.01
CSA C22.2 No 142
EN 61000-6-2
CSA C22.2 No 213
UL 61010-1
EN 61131-2
EN 61000-6-4

IP degree of protection

IP65f (front panel)
IP20 (rear panel)

Ambient air temperature for operation

0…50 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % without condensation

Operating altitude

2000 m

Vibration resistance

1 gn (f = 5…150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2

Shock resistance

15 gn for 11 ms conforming to IEC 61131-2

Electromagnetic compatibility

Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz)
Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2
Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

7.0 cm

Package 1 Width

15.0 cm

Package 1 Length

20.0 cm

Package 1 Weight

450.0 g

Contractual warranty

Warranty (in months)

Offer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained

Recyclability potential, in %

Total lifecycle Carbon footprint

637 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3]

27 kg CO2 eq.

Carbon footprint of the distribution phase [A4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [A5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6]

610 kg CO2 eq.

Mercury free

Yes

Sustainable packaging

Carbon footprint of the end-of-life phase [C1 to C4]

0.3 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total lifecycle Carbon footprint

637

F-gas free

Only air and vacuum used for insulation / breaking, no F-gas including SF6

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

SCIP Number

7155ec3f-2b83-4049-8830-d31f9c3341be

REACh Regulation

https://download.schneider-electric.com/files?p_Doc_Ref=PFXGP4115T3D_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29

EU RoHS Directive

https://download.schneider-electric.com/files?p_Doc_Ref=PFXGP4115T3D_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Halogen-free status

Product contains halogen above thresholds

PVC free

Silicone-free

End of life manual availability

End of Life Information

Take-back

WEEE Label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Dimensions Drawings

Mounting and Clearance
