1Other font sizes can be set up with the Editor software.
1Depending on the operating temperature and age of unit, the clock can deviate ±300 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
1Protection structure equivalent to IP67F can be expected if you affix the Overlay (sold separately) on the screen of the unit and the surroundings. Pro-face does not guarantee the protective structure. Consider the the protective structure in combination with a panel or a resin plate within your quality assurance range. For details, please refer to GP4000 Series Hardware Manual.
Equivalent to IP20 in a standard installation. In a flat installation, protection structure equivalent to IP67F can be maintained by affixing an overlay (sold separately) on the GP screen and its surrounding area. Use the overlay in combination with the protection structure of the panel or resin plate. In a flat installation, if you do not use an overlay, protection is equivalent to IP20.

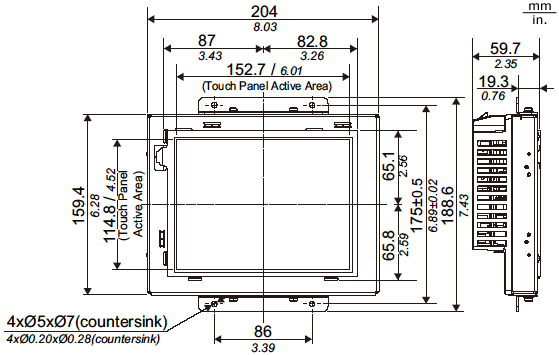

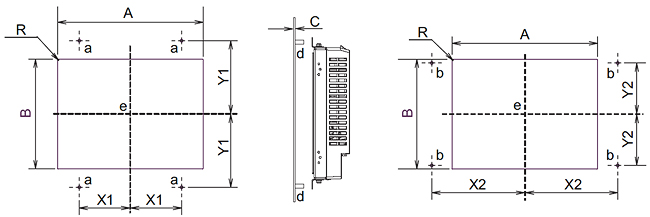

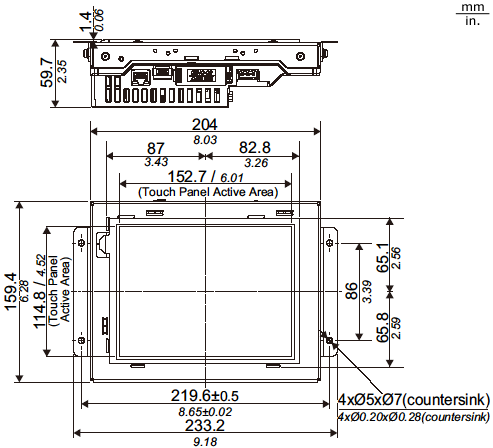

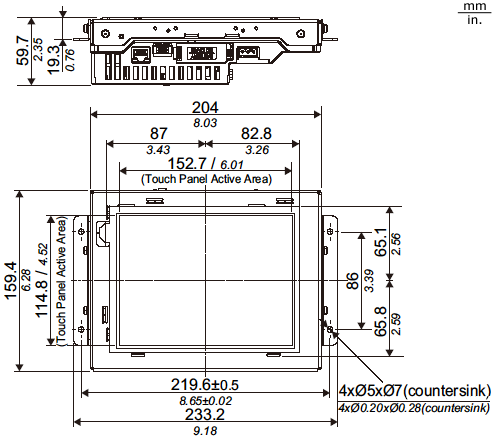

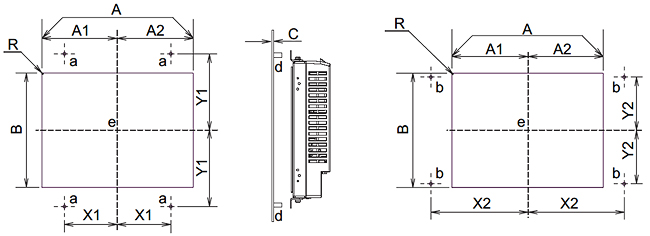

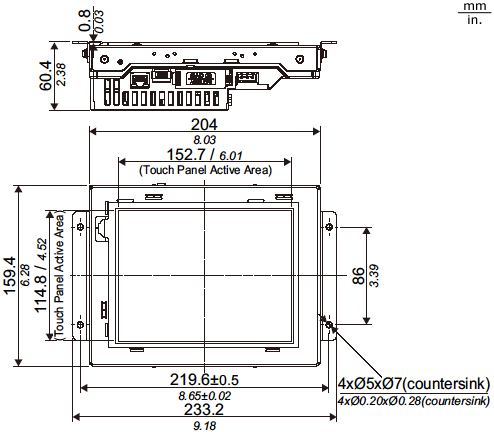

2As for dimensional tolerance everything +0.5/-0 mm [+0.02/-0 in.] and R in angle are below R1 [R0.04in.]
