PFXGP4621TAD

PFX_GP-4601t_front

12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, Supporting Video Unit, 24VDC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP4000
Complementary
Display size
12.1 inch
Display type
Colour TFT LCD
Display colour
65536 colours
Display resolution
800 x 600 pixels SVGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
16 levels via touch panel
16 levels by software
Character font
Japanese
ASCII
Chinese (simplified Chinese)
Chinese (traditional Chinese)
Korean
Cyrillic
Thai
[Us] rated supply voltage
24 V DC
Inrush current
30 A
Input voltage limits
19.2...28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating status (RUN)
Status LED green, flashing for logic stop
Status LED orange, flashing for software starting up
Status LED red, steady for power ON
Status LED red, flashing for ERR (Error)
Memory description
User data memory 32 MB
Backup memory 320 kB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
USB 2.0 type A
USB 2.0 type mini B
Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX
SD card slot
Video unit interface
Maximum power consumption in W
24 W
12 W when power is not supplied to external devices
7 W backlight off (standby mode)
8 W backlight dimmed (brightness: 20%)
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 screws, mounting on 1.6...5 mm thick panel
Cut-out dimensions
301.5 x 227.5 mm panel cut dimension

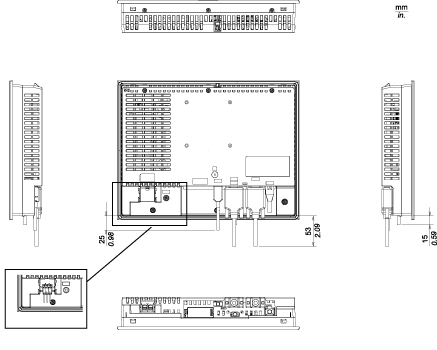

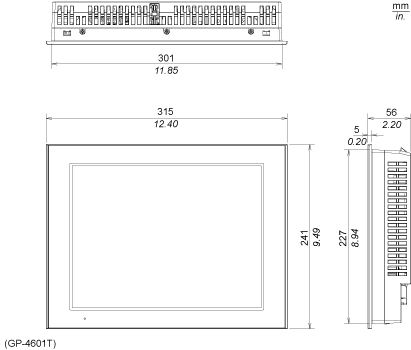

Width
315 mm
Height
241 mm
Depth
56 mm
Net weight
2.5 kg
Environment
Product certifications
UL
cUL
CE
UKCA
KC
RCM
EAC
NEMA degree of protection
NEMA 4X front panel (in enclosure)
NEMA 13 front panel (in enclosure)
Standards
UL 61010-2-201
CSA C22.2 No 61010-2-201
EN 61000-6-4
EN 61000-6-2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
IP degree of protection
IP65f (front panel (in enclosure))
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
18.000 cm
Package 1 Width
32.000 cm
Package 1 Length
40.000 cm
Package 1 Weight
3.366 kg
Contractual warranty
Warranty (in months)
18

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 194 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
204.77
Carbon footprint of the manufacturing phase [A1 to A3]
205 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.3923
Carbon footprint of the distribution phase [A4]
0.4 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.73658
Carbon footprint of the installation phase [A5]
0.7 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
985.0305882352942
Carbon footprint of the use phase [B2, B3, B4, B6]
985 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
3.1312
Carbon footprint of the end-of-life phase [C1 to C4]
3 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1194
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
3647523b-250a-4687-bcce-2d1cdcab982a
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
