PFXGP4601TMA

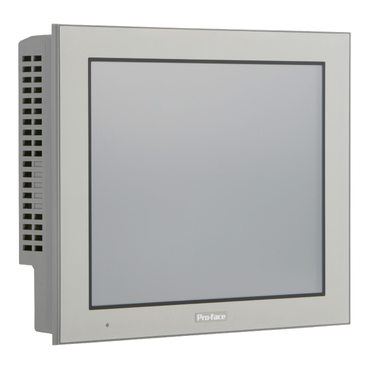

PF_65854_CPFJR18040

12.1 touch panel display, SVGA, Matrix, 2xCOM, ETH, USB A & mini-B, SD, AC

Main
Product or component type
Touch panel screen
Range of product
Pro-face GP4000
Software package
GP-Pro EX
Processor name
ARM926EJ-S
Field.endOfSales
-
Field.endOfRepair
-
Field.repairRemarks
-
category.replacementOption
Field.replacementCode
PFXGP6600TMA
Field.replacementComment
GP6000 Series
12.1" TFT color LCD
Matrix touch panel
AC power supply
Panel cut-out size same
Display resolution different
Blink function is not supported
For more details, refer to the "Replacement Guidebook"
Complementary
Display size
12.1 inch
Display type
Colour TFT LCD
Display colour
65536 colours
Display resolution
800 x 600 pixels SVGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
16 levels via touch panel
16 levels by software
Character font
Japanese
ASCII
Chinese (simplified Chinese)
Chinese (traditional Chinese)
Korean
Cyrillic
Thai
[Us] rated supply voltage
100...240 V AC
Inrush current
30 A
Rated short-duration power frequency withstand voltage
1.5 kV AC during 1 min
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating status (RUN)
Status LED green, flashing for logic stop
Status LED orange, flashing for software starting up
Status LED red, steady for power ON
Status LED red, flashing for ERR (Error)
Memory description
User data memory 32 MB
Backup memory 320 kB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI
USB 2.0 type A
USB 2.0 type mini B
Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX
SD card slot
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 4 screws, mounting on 1.6...5 mm thick panel
Cut-out dimensions
301.5 x 227.5 mm panel cut dimension
Width
315 mm
Height
241 mm
Depth
56 mm
Net weight
2.5 kg
Environment
Product certifications
UL
cUL
CE
UKCA
UKEX
KC
CCC Ex
RCM
EAC
NEMA degree of protection
NEMA 4X front panel (in enclosure)
NEMA 13 front panel (in enclosure)
Standards
EN 61000-6-4
IEC 61000-6-2
UL 508
CSA C22.2 No 142
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
IP degree of protection
IP65f (front panel (in enclosure))
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
17.5 cm
Package 1 Width
32.0 cm
Package 1 Length
39.5 cm
Package 1 Weight
3.0 kg
Contractual warranty
Warranty (in months)
18

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
2 590 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
205 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.4 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.7 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
2 380 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
3 kg CO2 eq.
Total lifecycle Carbon footprint
2590
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
3647523b-250a-4687-bcce-2d1cdcab982a
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
