10 inch Wide HMI, WSVGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

Main
Product or component type
Touch panel screen
Range of product
Pro-face ET6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A8
Complementary
Display size
10 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1024 x 600 pixels WSVGA
Touch panel
Single touch analogue resistive
Brightness
16 levels
Character font
Greek
Latin
[Us] rated supply voltage
24 V DC +/- 20 %
Inrush current
30 A
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating
Status LED green, flashing for logic stop
Status LED orange, flashing for software starting up
Status LED red, steady for power supply (ON)
Status LED, off for power supply (OFF)
Power consumption in W
11 W
Port Ethernet
10/100BASE
Memory description
Device memory 256 MB
User data memory 64 MB
Backup memory 128 kB
Integrated connection type
1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom
1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom
COM2 serial link (rate: 2400...187500 bps)bottom
1 Ethernetbottom
1 USB 2.0 type Aback
1 USB 2.0 type micro Bback
Supply
External supply
Realtime clock
Built-in 0...50 °C
Built-in 10...90 % RH
Fixing mode
By 6 screws, mounting on 1.6...5 mm thick panel
Cut-out dimensions
255 x 185 mm panel cut dimension
Width
271 mm
Height
201 mm
Depth
47 mm
Net weight
0.99 kg
Environment
Immunity to microbreaks
5 ms
Enclosure material
PC
Front material
Plastic
Product certifications
CE
UL
KC
UKCA
NEMA degree of protection
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)
Standards
IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-1-201
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
IP degree of protection
IP20 (rear panel) conforming to IEC 61131-2
IP65 (front panel) conforming to IEC 61131-2
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Operating altitude
2000 m
Vibration resistance
+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
9.8 m/s² (f = 9…150 Hz)
Shock resistance
147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
11.500 cm
Package 1 Width
25.200 cm
Package 1 Length
37.500 cm
Package 1 Weight
1.527 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
897 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
225.4899977268
Carbon footprint of the manufacturing phase [A1 to A3]
225 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0.127727779
Carbon footprint of the distribution phase [A4]
0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.0126444987
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
671.1159
Carbon footprint of the use phase [B2, B3, B4, B6]
671 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
0.2734934076
Carbon footprint of the end-of-life phase [C1 to C4]
0.3 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
897
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
Fb517918-35ee-4cc6-8104-c869784aec43
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

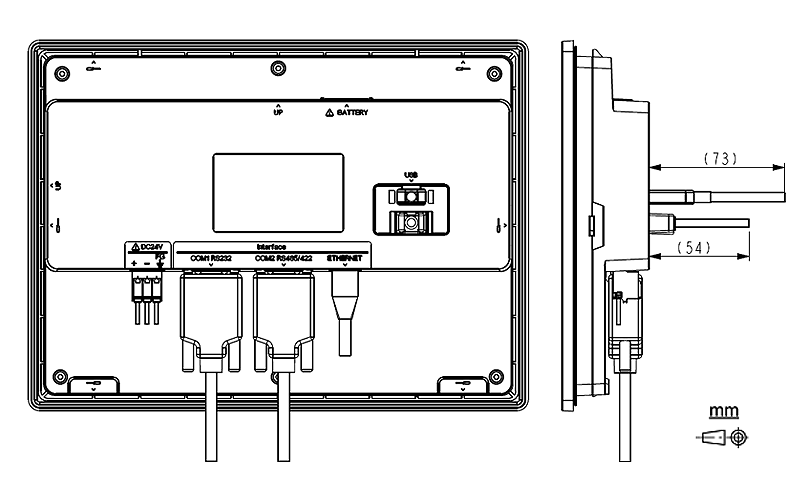

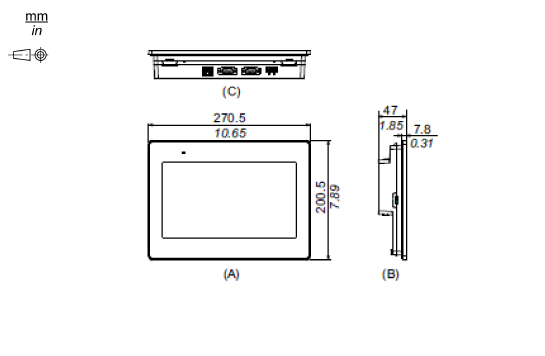

Dimensions Drawings

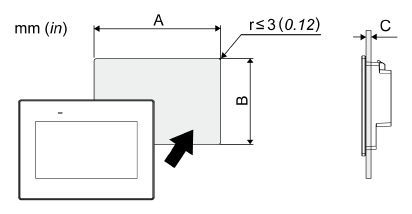

Mounting and Clearance
