Multi-Converter for FANUC CNC

End of Sale: Dec 23, 2022

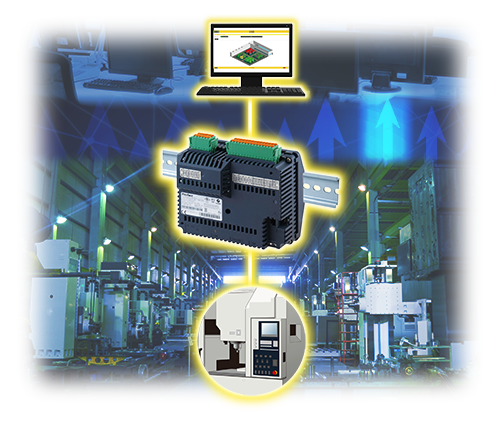

Collect CNC data from legacy machines
to MT-LINKi via Multi-Converter

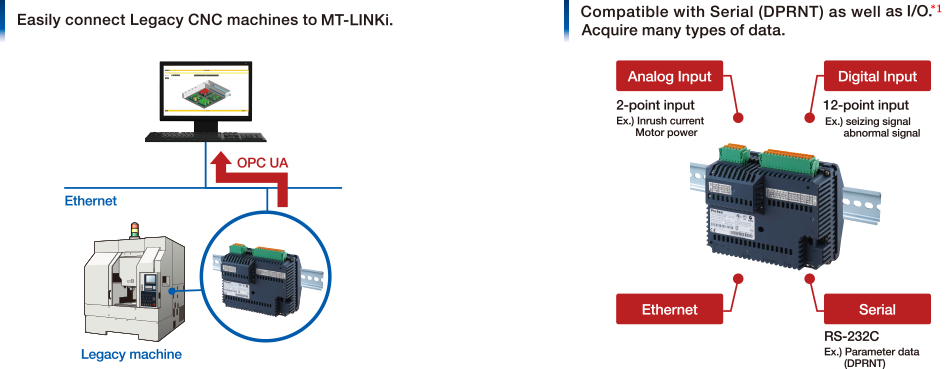

[Feature 1] Easily connect Legacy CNC machines to MT-LINKi!
[Feature 2] Compatible with Serial (DPRNT) as well as I/O *1.
Acquire many types of data!
[Feature 3] Configure main unit set tings on a Web browser.
No external software required!



*1 Only input (DI x12 / AI x2) can be used (Read-only). Outputs such as analog output are not supported. Special IOs (high-speed counter, pulse input/output, temperature input) are not supported.

Setting Screens (on a Web browser)

Enlarge an image                                     Enlarge an image                                      Enlarge an image                                    Enlarge an image

Compatible CNC

 I/O signalRS-232C signal(DPRNT) *2
FANUC Series 0
FANUC Series 15
FANUC Series 16/18/20/21
FANUC Power Mate -D/F/H
FANUC Series 16i/18i/21i
FANUC Power Mate i
FANUC Series 15i
FANUC Series 0i
FANUC Series 30i/31i/32i/35i
FANUC Power Motion i
PLC and CNC other than the above

*2 Might not be compatible depending on configuration of CNC.
