PFXSP5B41 + PFXZCDADEXP1

Standard product information
Family
Data Collection Devices
Series
Multi-Converter
Model
PFXSP5B41 + PFXZCDADEXP1
Sales Status
Sale
Repair Status
PFXSP5B41: ✔, PFXZCDADEXP1: - (Maintenance service is not available. Replace with a new unit.)
Specification
Specifications

Electrical Specifications

Model SP5000 (Open Box)
Model No. (Base Module) PFXSP5B41
Model No. (Adapter) PFXZCDADEXP1
Rated input voltage 12 to 24Vdc
Input voltage limits 10.8 to 28.8Vdc
Voltage drop 12Vdc: 1.25ms or less
24Vdc: 5ms or less
Power consumption Max (with Box Module) 25W or less
Max (adapter only) 2.0W or less
In-rush current 30A or less
Voltage endurance 1,000 Vac, 20 mA for 1 minute
(between charging and FG terminals)
Insulation resistance 500 Vdc, 10 MΩ or more
(between charging and FG terminals)


Environmental Specifications

Model SP5000 (Open Box)
Model No. (Base Module) PFXSP5B41
Model No. (Adapter) PFXZCDADEXP1
Surrounding air temperature 0 to 60 °C (32 to 140 °F)
(For a floor installation, 0 to 55 °C [32 to 131 °F])
Storage temperature -20 to 60°C
Surrounding air and storage humidity 10 to 90% RH (non-condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree For use in Pollution Degree 2 environment
Corrosive gases Free of corrosive gases
Atmospheric pressure (Operating altitude) 800 to 1,114 hpa (2,000 m [6,561 ft] or lower)
Vibration resistance IEC/EN 61131-2 compliant
5 to 9 Hz Single amplitude 3.5 mm (0.14 in)
9 to 150 Hz Fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approximately 100 minutes)
Shock resistance IEC/EN 61131-2 compliant
147 m/s2, X, Y, Z directions for 3 times
Noise immunity Noise voltage: 1,000 Vp-p
Pulse duration: 1 µs
Rise time: 1 ns
(via noise simulator)
Electrostatic discharge immunity Contact discharge method: 6 kV (IEC/EN 61000-4-2 Level 3)


Memory

Model SP5000 (Open Box)
Model No. (Base Module) PFXSP5B41
Model No. (Adapter) PFXZCDADEXP1
Application Memory When using GP-Pro EX:
Media: CFast Card
Screen Area: 64MB
User Font Area: No Upper Limit
Logic Program Area: None
Free Space: Approx. 17GB *1

Removable System: Yes
Backup Memory When using GP-Pro EX:
Screen Area: NVRAM 320KB or CFast/SD Card (storage) 5MB
Variable Area: NVRAM 64KB

Battery: None *2
Control Memory -

*1 For the information of specifications to decide whether Windows applications can be installed or not, refer to "SP5000 Series Open Box Reference Manual".

*2 SP5000 Series can retain NVRAM (backup memory) and RTC (clock data) without any batteries. But, when no power is supplied for 100 days or more, it's necessary to additionally mount this option item to retain RTC (clock data).

Interface Specifications

Model SP5000 (Open Box)
Model No. (Base Module) PFXSP5B41
Model No. (Adapter) PFXZCDADEXP1
Serial (COM1) RS-232C/ 422 / 485
Data Length: 7 or 8 bits
Stop Bit: 1 or 2 bits
Parity: None, Even or Odd
Data Transmission Speed: 2,400 (1,200) to 115,200 bps
Connector: D-Sub9 (plug)
Serial (COM2) RS-232C / 422 / 485
Data Length: 7 or 8 bits
Stop Bit: 1 or 2 bits
Parity: None, Even or Odd
Data Transmission Speed: 2,400 (1,200) to 115,200 bps
Connector: D-Sub9 (plug)
USB (Type A) *3 Conforms to USB 2.0 (Type A) x 3
Power supply voltage: 5 Vdc ±5 %
Maximum Output Current: 500 mA/port, 1A total for 3 ports
Communication distance: 5 m [16.4 ft.]
USB (mini B) Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
Ethernet IEEE802.3i / IEEE802.3u / IEEE802.3ab
10BASE-T / 100BASE-TX / 1000BASE-T
Connector: Modular jack (RJ-45) x 2
Ethernet (Adapter side) IEEE802.3i / IEEE802.3u
10BASE-T/100BASE-TX
Connector: Modular jack (RJ-45) x 1
SD Card SD Card Slot (Storage) x 1
CFast Card CFast Card Slot (System) x 1
CFast Card Slot (Storage) x 1
Video DVI-D output
Connector: DVI-I 24 pin (socket) x 1
Resolution: up to 1,920 x 1,200 pixels (WUXGA, VESA compatible)
Sound Input Sound Input: MIC or LINE input (software switch)
Connector: MINI-JACK ∅3.5 x 1
Sound Output Speaker Output: 300mW or more (Rated Load: 8Ω, Frequency: 1kHz) (Software Switch)
LINE Output: 4.0Vp-p (Rated load: 10kΩ) (Software Switch)
Connector: 2-piece terminal block (AUX) x 1
AUX Output Alarm Output or Buzzer Output x 1
Rated Voltage: 24 Vdc, Rated Current: 50 mA or less
Connector: 2-piece terminal block x 1

*3 When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one barcode reader. If you connect multiple devices that are the same type, only the first device will work.

Structural Specifications

Model SP5000 (Open Box)
Model No. (Base Module) PFXSP5B41
Model No. (Adapter) PFXZCDADEXP1
Grounding Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method Natural air circulation
External dimensions W189 x H134 x D69mm (7.44 x 5.28 x 2.72 in)
Weight 1.65kg (3.64 lb) or less


External Dimensions

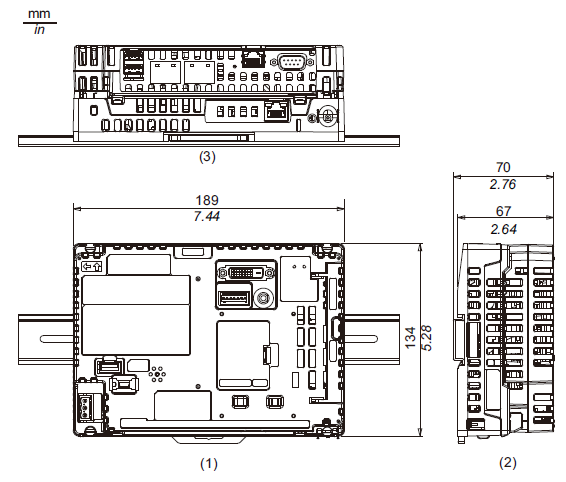

Box Module with DIN rail

PSA Dimensions
1 Front
2 Left
3 Bottom

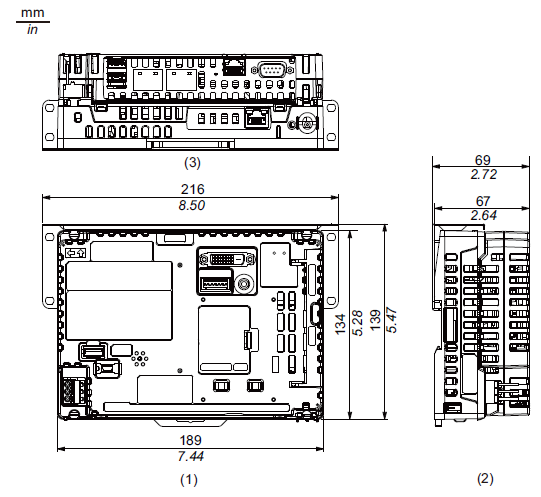

Box Module with Wall Mount Adapter

PSA Dimensions
1 Front
2 Left
3 Bottom
