PFXLM4B01DAKFF

Standard product information
Family
Data Collection Devices
Series
Multi-Converter
Model
PFXLM4B01DAKFF
Product Features
AIO + DIO model
Sales Status
Sale
Repair Status
- (Maintenance service is not available. Replace with a new unit.)
Specification
Specifications

Compatible CNC

  I/O signal RS-232C signal(DPRNT) *1
FANUC Series 0
FANUC Series 15
FANUC Series 16/18/20/21
FANUC Power Mate -D/F/H
FANUC Series 16i/18i/21i
FANUC Power Mate i
FANUC Series 15i
FANUC Series 0i
FANUC Series 30i/31i/32i/35i
FANUC Power Motion i
PLC and CNC other than the above

*1 Might not be compatible depending on configuration of CNC.



Electrical Specifications

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
Rated Input Voltage 24 Vdc
Input Voltage Limits 20.4 to 28.8 Vdc
Acceptable Voltage Drop 10 ms or less at 20.4 Vdc
Power Consumption 10.4 W or less
In-Rush Current 30 A or less at 28.8 Vdc
Voltage Endurance between power terminal and frame ground (FG) 500 Vdc for 1 minute
Insulation Resistance between power terminal and FG 10MΩ or higher at 500 Vdc


Environmental Specifications

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
Standard compliance IEC 61131-2
Ambient operating temperature Horizontal installation 0 to 50 °C (32 to 122 °F)
Vertical installation 0 to 40 °C (32 to 104 °F)
Storage temperature - 20 to 60 °C (- 4 to 140 °F)
Storage altitude 0 to 10,000 m (0 to 32,808 ft)
Operating altitude 0 to 2,000 m (0 to 6,560 ft)
Surrounding Air and Storage Humidity 5 to 85% w/o condensation (non-condensing, wet bulb temperature 39°C (102.2°F) or less)
Dust ≤0.1 mg/m3 (10-7 oz/ft3) (non-conductive levels)
Degree of pollution IEC 60664 2
Degree of protection IEC 61131-2 IP20 with protective covers in place
Corrosive gases Free of corrosive gases
Atmospheric pressure  (Operating Altitude) 800 to 1,114 hPa (2000 m (6,561 ft) or lower)
Vibration resistance Mounted on a DIN rail 3.5 mm (0.138 in.) fixed amplitude from 5 to 8.4 Hz 9.8 m/s2 (1 gn) fixed acceleration from 8.4 to 150 Hz
Mechanical shock resistance Mounted on a DIN rail 147 m/s2 (15 gn) for a duration of 11 ms
Electrostatic discharge IEC/EN61000-4-2 8 kV (air discharge) 6 kV (contact discharge)
Radiated radio frequency electromagnetic fields IEC/EN61000-4-3 10 V/m (80 MHz to 3 GHz)
Fast transients / Burst noise IEC/EN61000-4-4 Power lines: 2 kV Digital I/O: 1 kV Relay outputs: 2 kV Ethernet line: 1 kV COM line: 1 kV CAN line: 1 kV
Surge immunity IEC/EN61000-4-5 Power supply: CM: 1 kV; DM: 0.5 kV Digital I/O: CM: 1 kV; DM: 0.5 kV Shielded cable: 1 kV CM = line-earth DM = line-line
Vibration immunity (operating) IEC61131-2
Protection IP20 (IEC60529)
Shock immunity (operating) IEC61131-2  15 gn 11 ms


Interface Specifications

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
Serial (COM) RS-232C/RS485
Connector type: RJ-45, Cable type: Shielded Cable
USB(Type A) USB 2.0 (Type A) x 1
(Power Supply Voltage: 5Vdc +/-5%, Maximum Current Supplied: 500mA, Maximum Transmission Distance: 5m (16.4 ft.))
USB(mini B) USB 2.0 (Mini-B) x 1, Maximum Transmission Distance: 5m (16.4 ft.)
Ethernet 10BASE-T/100BASE-TX
Connector type: Modular jack (RJ-45) x 1 Connector type: RJ45
Control Digital Input 12 points standard input (sink / source)
Analog Input 2 ch analog inputs (13-bit)
Note1: Important notes for using AIO

A signal might be output to the analog output terminal while Multi-Converter is starting. Design an external device unit connected to the analog output terminal so that the power is supplied after the Multi-Converter starts. Design it considering momentary power interruption when the power supply of the Multi-Converter is different from that of the external device unit.



Structural Specifications

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
Cooling Method Natural air circulation
External Dimensions W131.35 x H115.3 x D74.4 mm (W5.17 x H4.49 x D2.9 in.)
Weight 544 g (19.19 oz)


Control Specifications (Digital Inputs)

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
Rated Current 5mA
Inrush Values Voltage 30Vdc
Current 6.29mA max.
Input impedance 4.9kΩ
Input type Sink/Source
Rated voltage 24Vdc
Maximum Allowable Voltage 28.8Vdc
Input limit values ON Voltage 15Vdc or more (15 to 28.8 Vdc)
OFF Voltage 5Vdc or less (0 to 5Vdc)
ON Current 2.5mA or more
OFF Current 1.0mA or less
Isolation Method Photo coupler Isolation
Between internal logic 500Vdc
Filtering 0.5ms x N (N is 0 to 63)
IEC61131-2 edition 3 type Type 1
Compatibility Supports 2 wire and 3 wire sensors.
Cable type and length Shielded: Maximum 100 m (328 ft)
Non-shielded: 50m (164 ft)
Terminal blocks Type: 3.5mm (0.137 in.) pitch
Terminal blocks are removable.
Input paralleling No


Control Specifications (Analog Inputs)

Models Multi-Converter for FANUC CNC
Model PFXLM4B01DAKFF
  Voltage input Current input
Number of maximum input 2
Input type Single-ended
Input range -10 to 10Vdc/0 to 10Vdc 0 to 20mA/4 to 20mA
Input impedance 1MΩ or more 250 ±0.11%Ω
Sample duration time 10ms per channel + 1 scan time
Total input system transfer time 20ms + 1 scan time
Input tolerance Maximum deviation at 25̊C (77̊F) without electromagnetic disturbance ± 1% of the full scale
Maximum deviation ± 2.5% of the full scale
Digital resolution 13 bits
Temperature drift ±0.06% of the full scale
Common mode characteristics 80dB
Cross talk 60dB
Non-linearity ±0.4% of the full scale
Input value of LSB 5mV 10μΑ
Maximum allowed overload (no damages) ±30Vdc (less than 5 minutes) ±15Vdc (No damage) ±30mAdc
Protection type Photo coupler between input and internal circuit
Cable Type Shielded
Length Must be less than 3 m for IEC 61131-2 conformance. Maximum transmission distance is 10m.
Terminal blocks Type: 3.5mm (0.137 in.) pitch
Terminal blocks are removable.
Isolation External input Photo coupler isolation
Between channels Non-isolated


External Dimensions

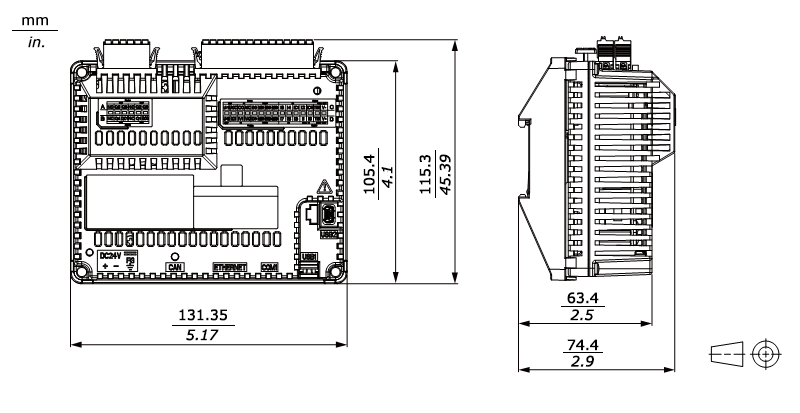

Multi Data Box Dimensions
