[Azbil Corporation (Former: Yamatake Corporation)] Temperature Controller Connection Sample(LT4000M Series)

Summary

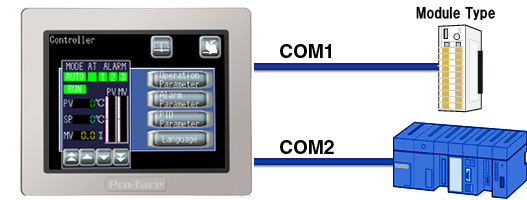

You can connect the temperature controller with PLC connected by using the multi-protocol feature of LT4000M Series.

Details

Supported Connection Devices

ManufacturerSupported Model
Azbil CorporationDMC10/SDC15

Target HMI

Related UnitsLT4000M Series
Notes
  • LT4000M Series support this functionality.
  • GP-Pro EX Ver. 1.10 or higher is required.For LT4000M Series, GP-Pro EX Ver. 3.12.000 or later is required.
  • We do not guarantee that the operation of this sample will be interrupted or error-free.

Features

  • Easy connection to the controller
  • Data can be shared with PLC.
  • You can set the parameter of the controller on the touch panel.
  • You can check alarm information of the controller on the touch panel.
  • You can check the change of states on the trend graph.
  • You can save the trend graph data to a CF card.
  • The module-typed controller is supported. You can set or check even without a dedicated monitor.

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.

Download file

samples
Azbil SDC15
724.12 kB (741,501 Byte)
samples
Azbil DMC10
687.93 kB (704,439 Byte)
