GPH6000-MM01-EN.00

Installing the Dedicated Cable

This section describes how to attach a dedicated cable to the hard-wired handheld display.

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
  • Remove all power from the device before removing any covers or elements of the system, and prior to installing or removing any accessories, hardware, or cables.
  • Remove power before wiring this product's power terminals.
  • Always use a properly rated voltage sensing device to confirm power is off where and when indicated.
  • Replace and secure all covers or elements of the system before applying power to this product.
  • Use only the specified voltage when operating this product. This product is designed to use 24 Vdc. Always check whether your device is DC powered before applying power.
  • Since this product is not equipped with a power switch, be sure to connect a power switch to the power supply.
  • Be sure to ground this product's FG terminal.
Failure to follow these instructions will result in death or serious injury.
NOTICE
EQUIPMENT DAMAGE
Do not exert more torque than the amount specified.
Failure to follow these instructions can result in equipment damage.
  1. Place the product face down on a clean, flat, level surface.

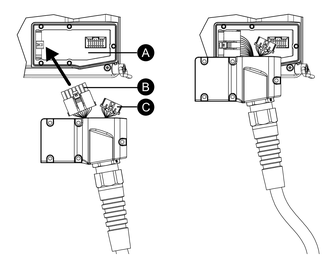

  2. Connect the larger connector on the cable to the connector in the dedicated cable installation opening on the rear of the product.
    1. Dedicated cable installation opening

    2. Larger connector

    3. Smaller connector

  3. Connect the smaller connector of the cable to the connector on the rear of the product.
  4. Use a screwdriver (Ph1) to fasten the five screws that come with the cable to secure it. The necessary torque is 0.6 N•m (5.3 lb-in).
