Enabling Switch
| NOTICE |
|---|
|
EQUIPMENT DAMAGE
Do not expose the switch to excessive shock or vibration.
Failure to follow these instructions can result in equipment damage.
|
This product has a 3-position switch with two arbeit contacts (a-contact, normally open) as the enabling switch. While the enabling switch is pressed to the middle position (position 2), operation of the connected device is available.
Releasing the switch (position 1) or pressing it firmly (position 3) prevents operation of the connected device.

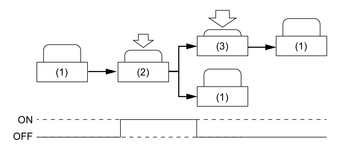

The continuity status at each switch position are as follows:
|
Signal name |
Position
1 |
Position
2 |
Position
3 |
|---|---|---|---|
|
ENB1 |
0 (OFF) |
1 (ON) |
0 (OFF) |
|
ENB2 |
0 (OFF) |
1 (ON) |
0 (OFF) |
-
For the safety function parameters of this switch, refer to Safety Parameters.
-
While returning to position 1 from position 3, the contacts remain OFF.
