Workspace

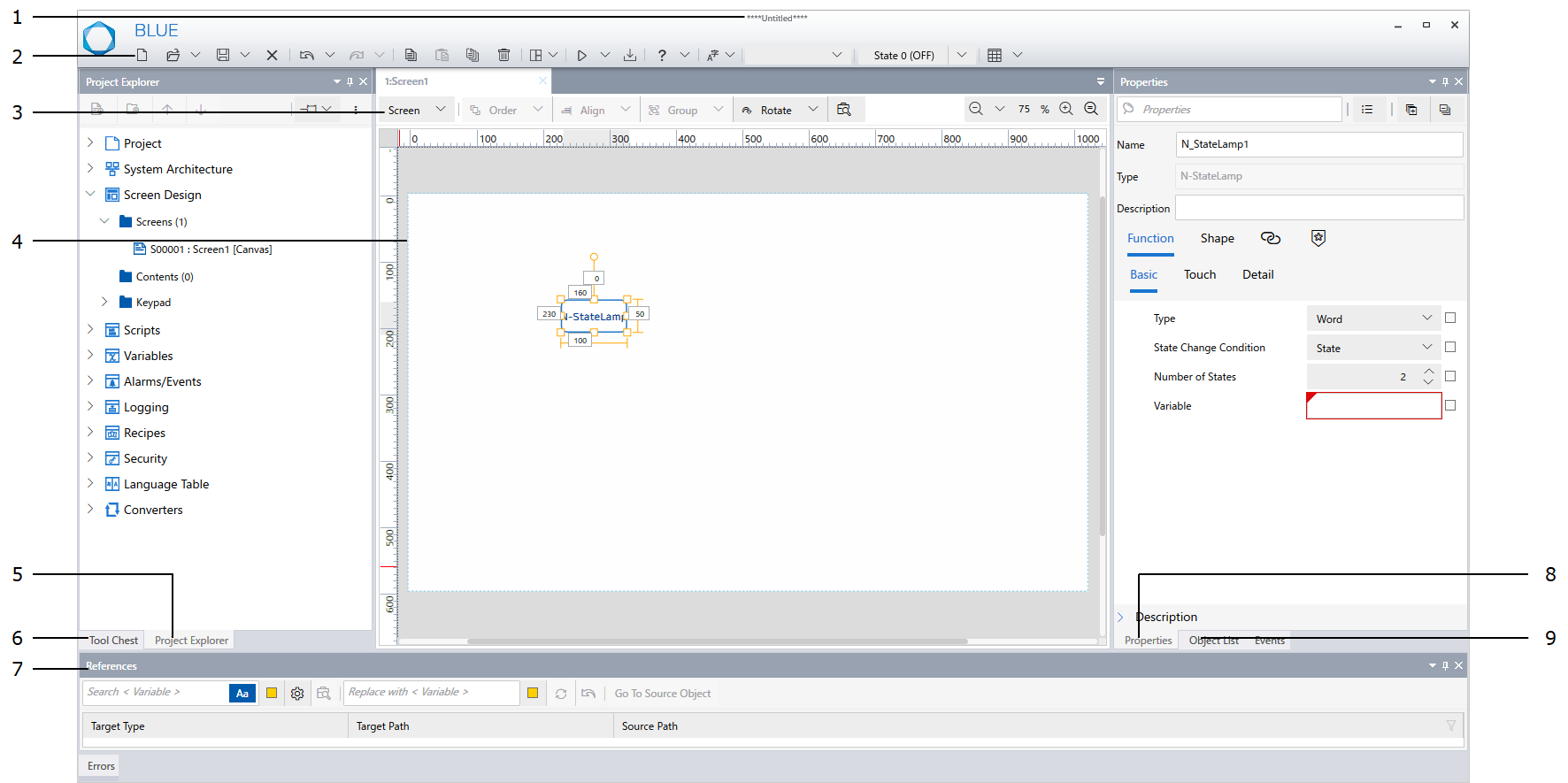

Screen editing software's basic window part names and functions are as follows:

Legend	Name	Description
1	[Title bar]	Displays the project name.
2	[Application Toolbar]	Displays commands such as, Simulate, Download, save, undo.
3	[Document toolbar]	Displays the commands related to the selected window in the [Document View].
4	[Document View]	Displays various editors used to create the project.
5	[Project Explorer]	This is the starting point to create a project. From this, you can navigate to project items such as screens, variables, alarms, target settings, equipment, and so on.
6	[Tool Chest]	This is a context based window from which you can select the required objects to be added in your project.
7	[Errors]	Displays the message such as errors found, warnings, and information while executing a project.
8	[Object List]	Displays a list of the object used on the screen.
9	[Properties]	Displays the properties of selected objects where you can configure the properties.
