Updated: 3/23/2026
Performance has been significantly improved.

Overview:

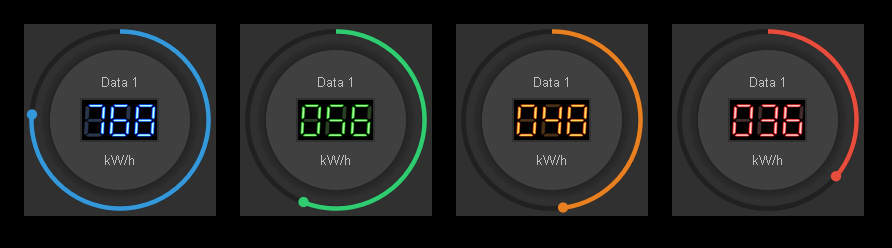

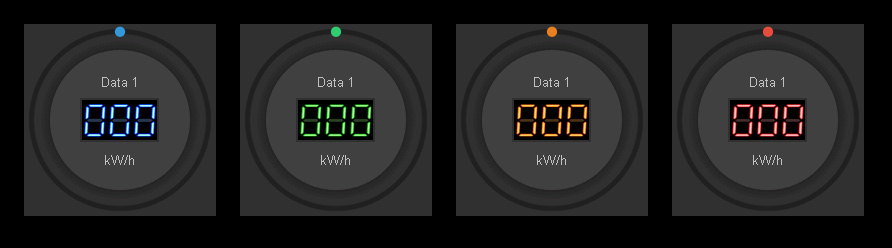

This is a digital pie chart.
Available in four different colors.
You can adjust the minimum and maximum ranges, and the amount of movement of the pie chart will automatically change accordingly.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
No Restrictions.
Details:
When you place this gauge on the screen, the following symbol variables and D-Script will be automatically registered in your project.
Please refer to the included simple manual for instructions on how to change the settings.
- (Symbol Variable) SD_Gauge07
- (Symbol Variable) SD_Gauge07_Setting
- (D-Script) SD_Gauge07
Remarks:

• The download data 'SmartDesign_Gauge.zip' also includes other Smart Design Gauges. If you have already downloaded another Smart Design Gauge, you do not need to download this part.
• This package file is not available in GP-Pro EX versions before 5.00.000.
